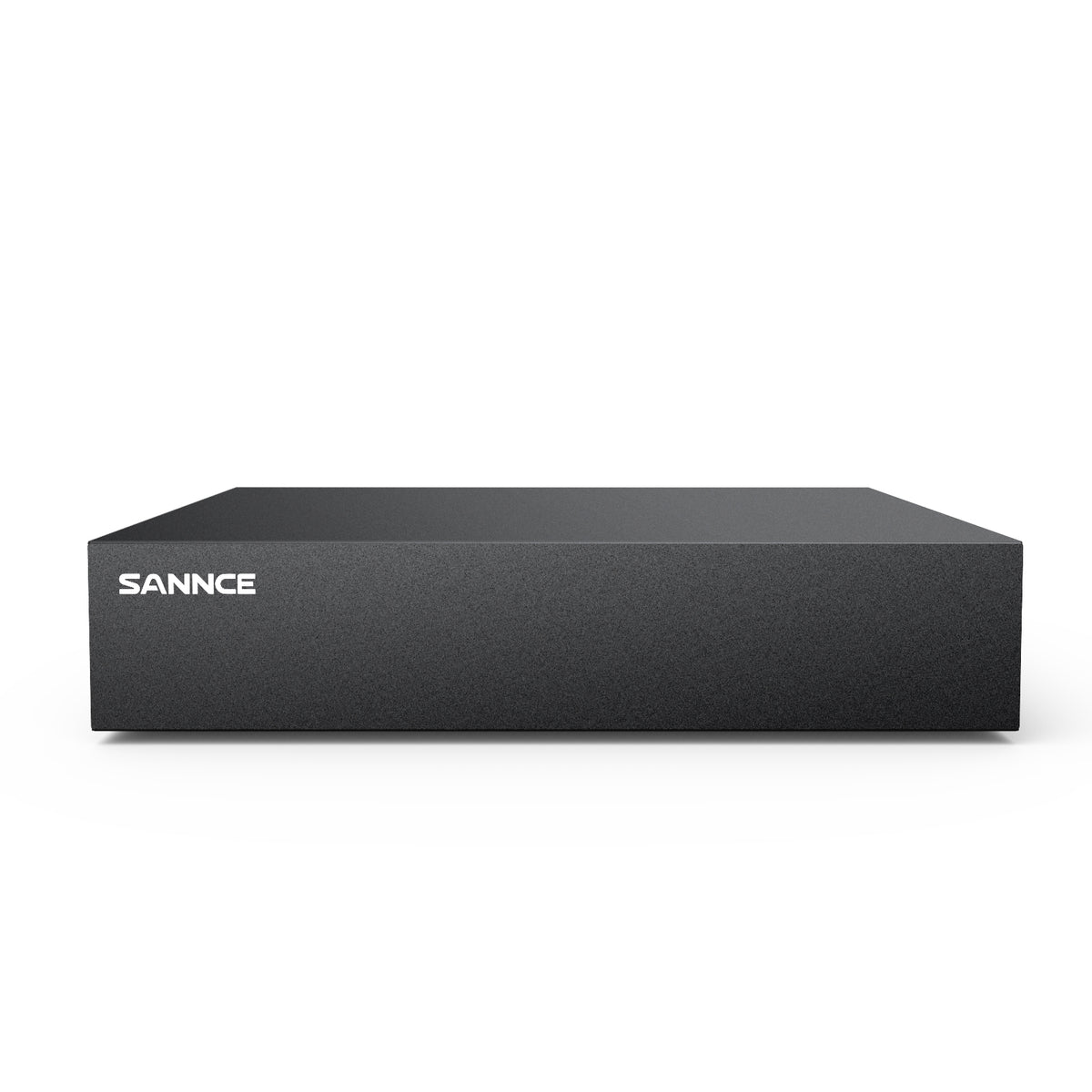

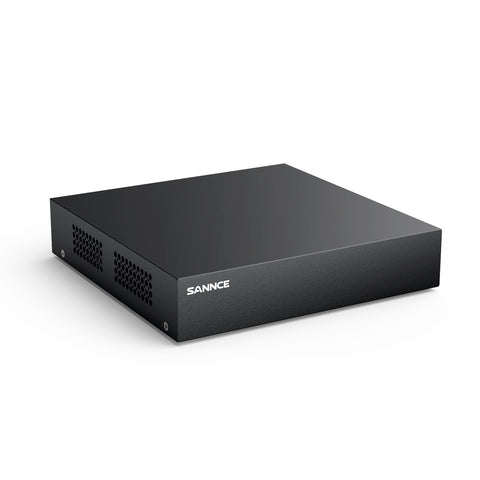

8 Channel 1080p Lite 5-in-1 DVR Recorder

Crisp 1080p Lite Stream The DVR delivers 1080p lite (960 x 1080) images to put your home or office under visible protection. HDMI & VGA connection enables up to 2MP...

    $65.99
  • Availability: In Stock
  • SKU: DN81BL
BUY AT AMAZON

Tags:

Crisp 1080p Lite Stream
The DVR delivers 1080p lite (960 x 1080) images to put your home or office under visible protection. HDMI & VGA connection enables up to 2MP Full HD stream output, producing lifelike images, never missing an event.

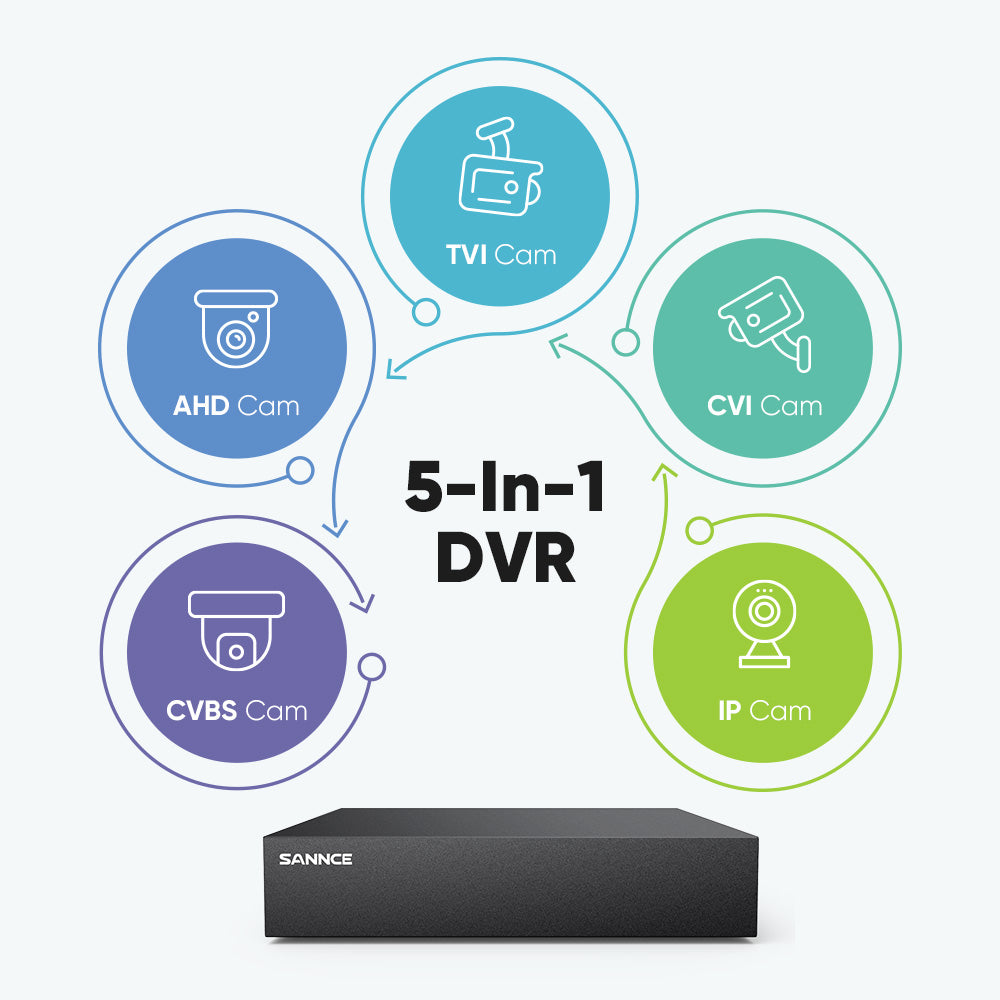

Powerful 5-in-1 DVR
The expandable 5-in-1 DVR can integrate with up to 8 SANNCE or third-party cameras. ONVIF compatibility enables the powerful DVR to work with third-party software including Blue Iris, Synology, etc.

24/7 Security in Your Hand
You are allowed to access the DVR system via the app on you phones to watch high-clarity live stream any time you like. Always stay connected to your home and family, no matter you are in the work or on the journey.

Intelligent Motion Alerts
Real-time motion alerts will be sent to you via you emails or app pushes. You can customize the monitoring areas you care most like the backdoor, garage, and doorstep, to get accurate alerts. Tap to see what happened in your home or office.

Smart Playback & USB Backup
The smart playback enables you to quickly locate and play back footages containing motions, saving you much time and effort. Connect a USB drive to the DVR for optional local backup.

What’s in the Box
1X DVR
1X Power Adapter
1X USB Mouse
1X User Manual


Specifications

Download DN81BL Specification


DVR
(Model Number: DN81BL)
Video & Audio Video Compression H.264+/H.264
Video Input 8CH HD Analog
Video Output HDMI and VGA up to 1080p
Audio Input 1CH RCA; 8CH via Coaxial Cable
Audio Output 1CH RCA
Analog HD Recording Resolution 1080p Lite (960 X 1080)
Analog HD Playback Resolution 1080p Lite (960 X 1080)
IPC Recording Resolution 2CH (Up to 2MP)
IPC Playback Resolution 2MP
Max. Playback Channel 8CH
ONVIF Protocols Support
Hard Drive HDD 1 SATA Interface
HDD Capacity Up to 6 TB Capacity
General Network Interface RJ45 X1 (10/100 M)
USB USB 2.0 X2
Operating Power DC 12 V
Working Temperature 14 °F – 131 °F/-10 °C – 55 °C
Dimensions (W X H X D) 10.2” X 8.7” X 1.8”/260 X 222 X 45 mm
Weight (Without Hard Disk)  2.2 lbs./1 kg (Without HDD)
DVR
(Model Number: DN81BL)
Video & Audio
Video Compression H.264+/H.264
Video Input 8CH HD Analog
Video Output HDMI and VGA up to 1080p
Audio Input 1CH RCA; 8CH via Coaxial Cable
Audio Output 1CH RCA
Analog HD Recording Resolution 1080p Lite (960 X 1080)
Analog HD Playback Resolution 1080p Lite (960 X 1080)
IPC Recording Resolution 2CH (Up to 2MP)
IPC Playback Resolution 2MP
Max. Playback Channel 8CH
ONVIF Protocols Support
Hard Drive
HDD 1 SATA Interface
HDD Capacity Up to 6 TB Capacity
General
Network Interface RJ45 X1 (10/100 M)
USB USB 2.0 X2
Operating Power DC 12 V
Working Temperature 14 °F – 131 °F/-10 °C – 55 °C
Dimensions (W X H X D) 10.2” X 8.7” X 1.8”/260 X 222 X 45 mm
Weight (Without Hard Disk)  2.2 lbs./1 kg (Without HDD)
