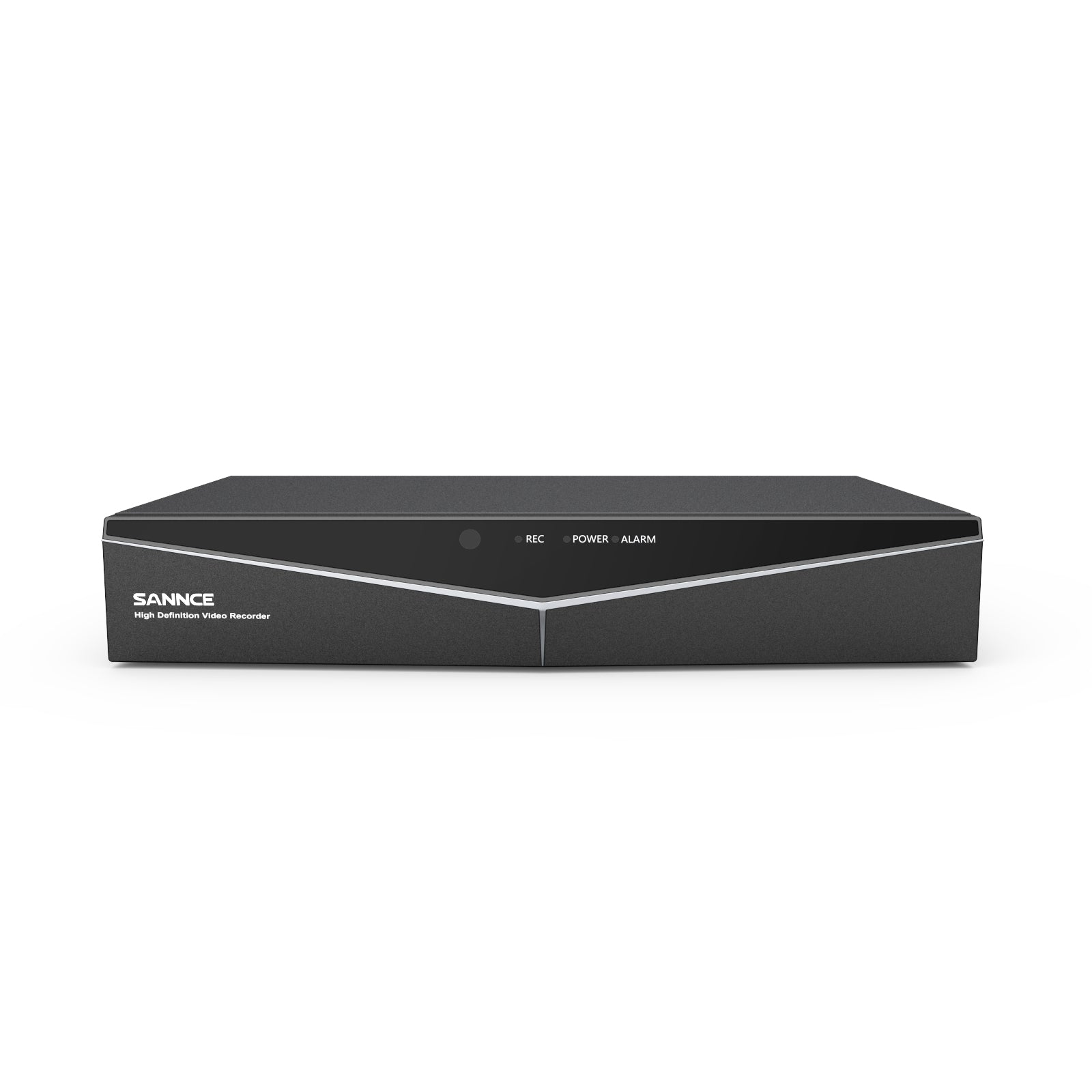

16-Channel 1080p Lite 5-in-1 Digital Video Recorder

Compatible 5-in-1 DVR The powerful 5-in-1 DVR is designed to work with all SANNCE and third-party cameras of AHD, TVI, CVBS, CVI and IP type. You can connect up to...

    $83.99
  • Availability: In Stock
  • SKU: DT61BB
BUY AT AMAZON

Tags:

Compatible 5-in-1 DVR
The powerful 5-in-1 DVR is designed to work with all SANNCE and third-party cameras of AHD, TVI, CVBS, CVI and IP type. You can connect up to 16 cameras with the DVR to enjoy all-round protection, and easier management of cameras.

Security in 1080p High Clarity
The DVR system works with HD camera to deliver high-clarity 1080p lite videos. You can easily get a good image quality which helps you in securing your home day or night.

Cutting-Edge H.265+ Codec
The enhance H.265+ codec helps greatly reduce the bandwidth and consumer much less video storage, allowing you enjoy faster and smoother recordings. You can record much longer video with the same storage space.

Stay Connected Anytime Anywhere
Access the DVR remotely with your smartphones, tablets or computers. You can watch the live stream or playback in HD to know what’s happening in your home. Take instant actions before damage occurs.

Smart Motion-Activated Alerts
You can customize the motion detection zones such as the window, backdoor, garage, yard. Receive instant app pushes or email alerts with snapshots whenever unusual motions are detected.

What’s in the Box
1X DVR
1X Power Adapter
1X USB Mouse
1X User Manual


Specifications

Download DT61BB Specification


DVR
(Model Number: DT61BB)
Video & Audio Video Compression H.265 Pro+/H.265+/H.265/H.264+/H.264
Video Input 16CH HD Analog
Video Output HDMI and VGA up to 1080p
Audio Input 1CH RCA
Audio Output 1CH RCA
Analog HD Recording Resolution 1080p Lite (960 X 1080@15fps)
Analog HD Playback Resolution 1080P Lite (960 X 1080)
IPC Recording Resolution 2CH (Up to 2MP)
IPC Playback Resolution 2MP
Max. Playback Channel 16CH
ONVIF Protocols Support
Hard Drive HDD 1 SATA Interface
HDD Capacity Up to 6 TB Capacity

External Interface
Network Interface RJ45 X1 (10/100 M)
BNC Output -
Alarm Input/Output -
RS485 -
USB USB 2.0 X2
General Operating Power DC 12 V
Working Temperature 14 °F – 131 °F/-10 °C – 55 °C
Dimensions (W X H X D) 10.2" X 8.7" X 1.8”/260 X 222 X 45 mm
Weight (Without Hard Disk)   2.2 lbs./1 kg (Without HDD)
DVR
(Model Number: DT61BB)
Video & Audio
Video Compression H.265 Pro+/H.265+/H.265/H.264+/H.264
Video Input 16CH HD Analog
Video Output HDMI and VGA up to 1080p
Audio Input 1CH RCA
Audio Output 1CH RCA
Analog HD Recording Resolution 1080p Lite (960 X 1080@15fps)
Analog HD Playback Resolution 1080P Lite (960 X 1080)
IPC Recording Resolution 2CH (Up to 2MP)
IPC Playback Resolution 2MP
Max. Playback Channel 16CH
ONVIF Protocols Support
Hard Drive
HDD 1 SATA Interface
HDD Capacity Up to 6 TB Capacity
External Interface
Network Interface RJ45 X1 (10/100 M)
BNC Output -
Alarm Input/Output -
RS485 -
USB USB 2.0 X2
General
Operating Power DC 12 V
Working Temperature 14 °F – 131 °F/-10 °C – 55 °C
Dimensions (W X H X D) 10.2" X 8.7" X 1.8”/260 X 222 X 45 mm
Weight (Without Hard Disk)   2.2 lbs./1 kg (Without HDD)
