32CH 4K Ultra HD Live View & Record
This powerful NVR is able to record smooth real-time 4K (12MP) videos on all 32 channels. If an incident occurs, 4K footages will offer the best chance to capture crystal & valuable pieces of evidence.

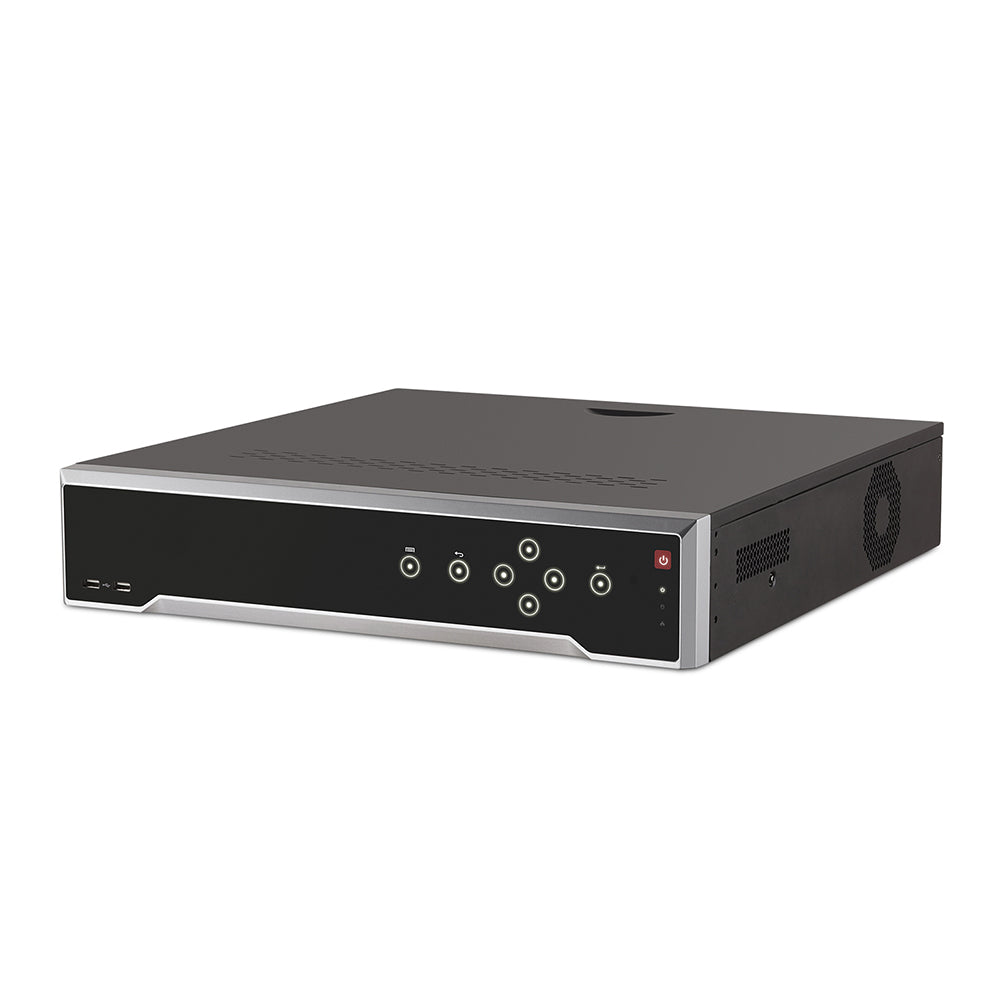

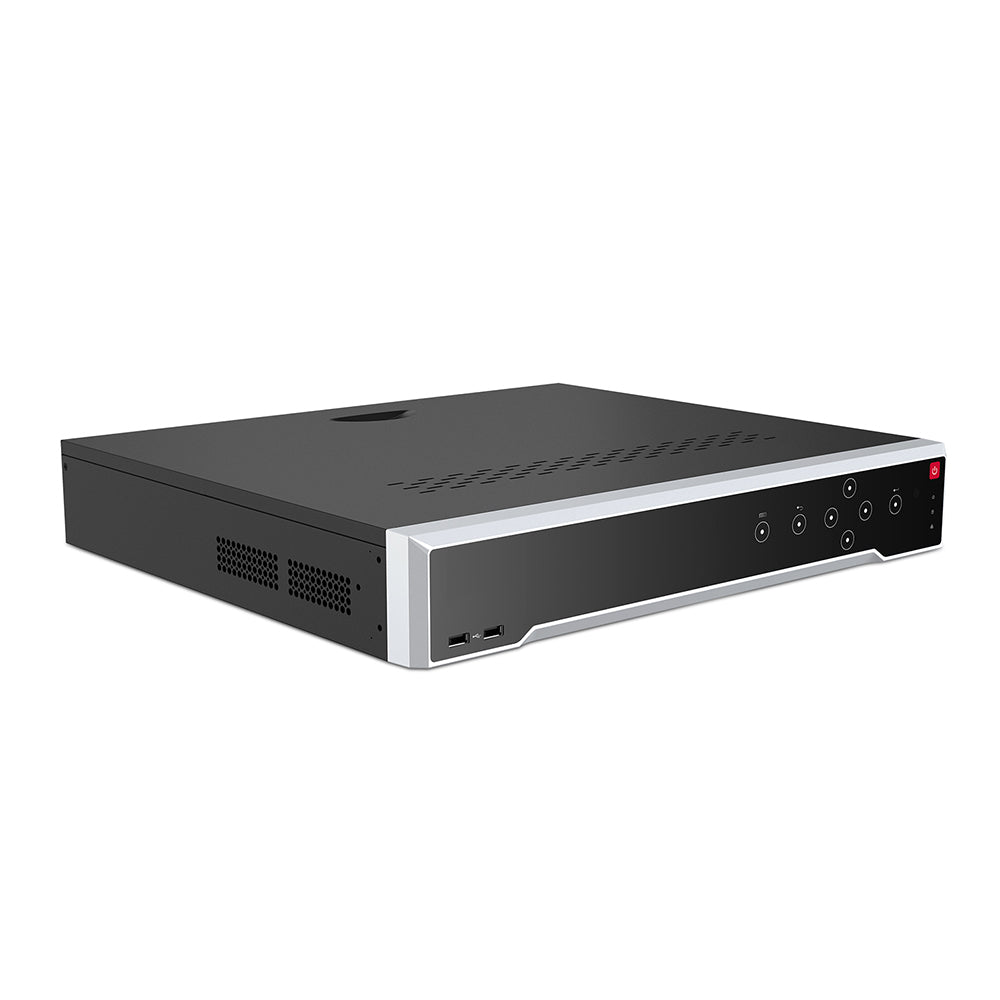

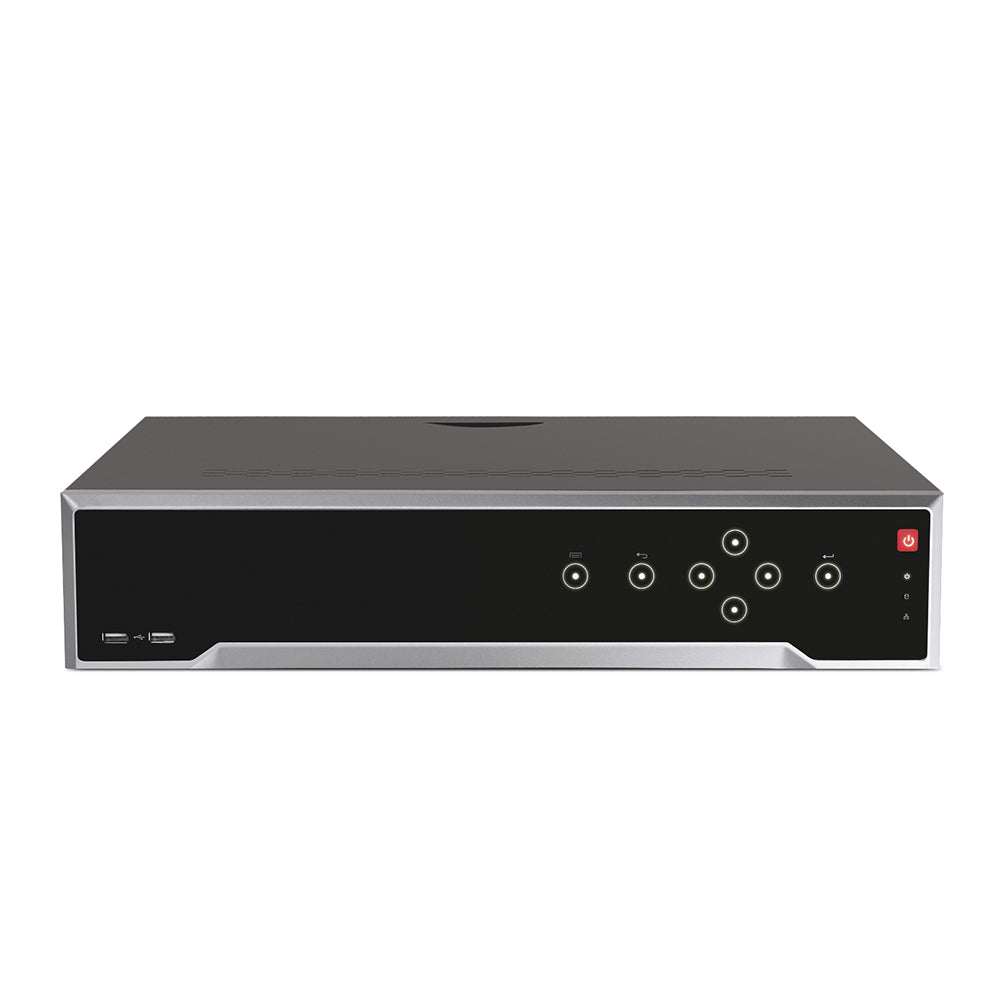

Expandable ONVIF 12MP 4K Ultra HD NVR
The NVR supports up to 32pcs ONVIF cameras (16 cameras connected to 16 PoE ports directly & another 16 cameras need a PoE injector - not included), which is compatible with 1MP, 2MP, 3MP, 4MP, 5MP, 6MP, 7MP, 8MP (4K) & 12MP IP cameras for unrivaled integration.
World's Most Secure Encryptions
You'll need to activate the NVR before any setup, preventing illegal hacking with the default account & password. The 2-factor verification method requires you to input the password to view the live stream.
Quadruple Video Coding Options
Quadruple H.264/H.264+/H.265/H.265+ coding allows for maximum encryptions with the latest tech & backward compatibility with legacy platforms. H.265+ video format provides fast stream without latency, consumes less bandwidth, and records longer videos than H.264 systems.
Plug & Play PoE Installation
Connect network cameras to the NVR PoE ports with just an Ethernet cable. The cable provides 330 ft ~ 1,000 ft data & power transmission. PoE allows you to install your security cameras wherever you need them most without having a power outlet nearby.
Customized Motion Areas & Privacy Mask
Customize the vital areas, like the front door, garage, to receive alerts only when motion events happen in these areas. Mask the private areas, such as windows, and license plates to protect your privacy. The NVR will ignore the areas when recording videos 24/7.
Smart Motion Detection Alerts
When there are motion events, you'll receive instant app pushes & email alerts and the buzzer alarms of the NVR. Access the NVR to check the motion events and take actions at once to deter intruders before the intrusion.
Remote Access with Free Guarding Vision Software
Manage the NVR with free Guarding Vision software on your smartphones, tablets or computers via 3G/4G/5G or WiFi. Stay connected with your properties wherever, when you're in the office or traveling.
Multiple Recording Options
24/7 continuous record: Record footage all of the time both day & night.
Scheduled recording: Set up the NVR recording videos based on your scheduled time.
Motion recording: Record videos only when there are motion events to save storage space.
What's in the box?
Model Number | N931BB | |
Video & Audio | Video Compression | H.265+/H.265/H.264+/H.264/MPEG4 |
IP Video Input | 32 Channel (Include 16 Channel PoE) | |
Video Output | HDMI up to 4K, VGA up to 1080p, CVBS | |
Audio Input/Output | 1/1 RCA | |
Incoming Bandwidth | 256 Mbps | |
Max Recording Resolution | Up to 12MP | |
Max Playback Resolution | Up to 12MP | |
Max Playback Channel | 16 Channel | |
Max Playback Capacity | 2CH @12MP (20 fps)/4CH @8MP (25 fps)8-ch @ 4MP (30 fps)/16-ch @ 1080p (30 fps) | |
ONVIF Protocol | Support | |
Hard Drive | HDD | 4 SATA Interface |
HDD Capacity | Up to 12 TB Capacity for Each HDD(48 TB total) | |

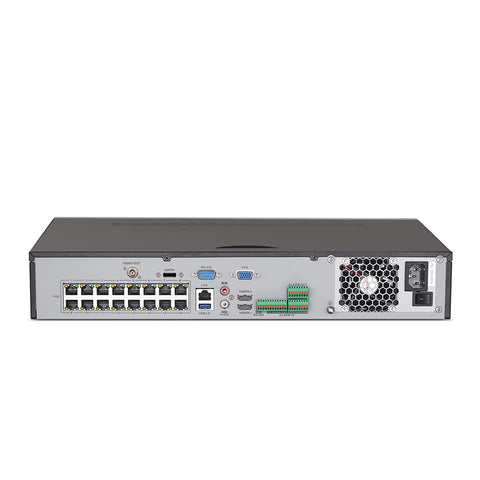

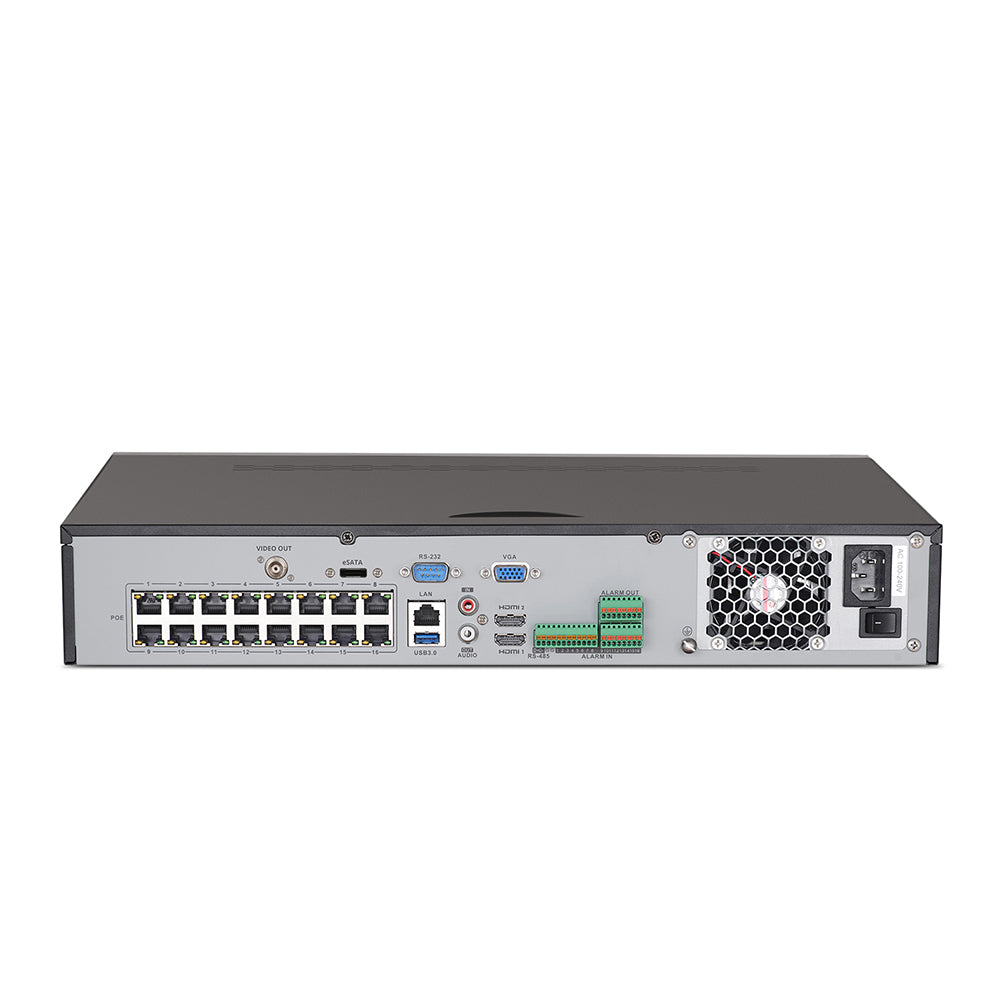

External Interface |
Network Interface | RJ45 X1 (10/100/1000 M) |
PoE | 16 Ports (IEEE802.3at/af) | |
Alarm Input/Output | 16/4 | |
Serial Interface | 1 RS-485 (Half-Duplex), 1 RS-232 | |
USB | Front Panel: 2X USB 2.0; Rear Panel: 1X USB 3.0 | |
General | Operating Power | 100-240V |
Power Consumption | <20 W (Without HDD and PoE) | |
Working Temperature | 14 °F — 131 °F/-10 °C — +55 °C | |
Dimensions (W X H X D) | 17.5" X 15.7" X 2.8" (445 mm X 400 mm X 71 mm) | |
Weight (Without Hard Disk) | ≤11 lbs. (5 kg) |
