High Quality 1080p Lite Stream
The smart home & business security system, with 1080p Full HD camera, delivers crisp images all the time. Digital WDR enables the outdoor video camera to record sharper videos in challenging bright/dark lighting situations.
100 ft EXIR 2.0 Night Vision
Adopting enhanced EXIR 2.0 night vision, the wired security camera can provide crystal-clear night-time videos from up to 100 ft away, even in complete darkness. DNR helps greatly remove the image noise for clearer images.

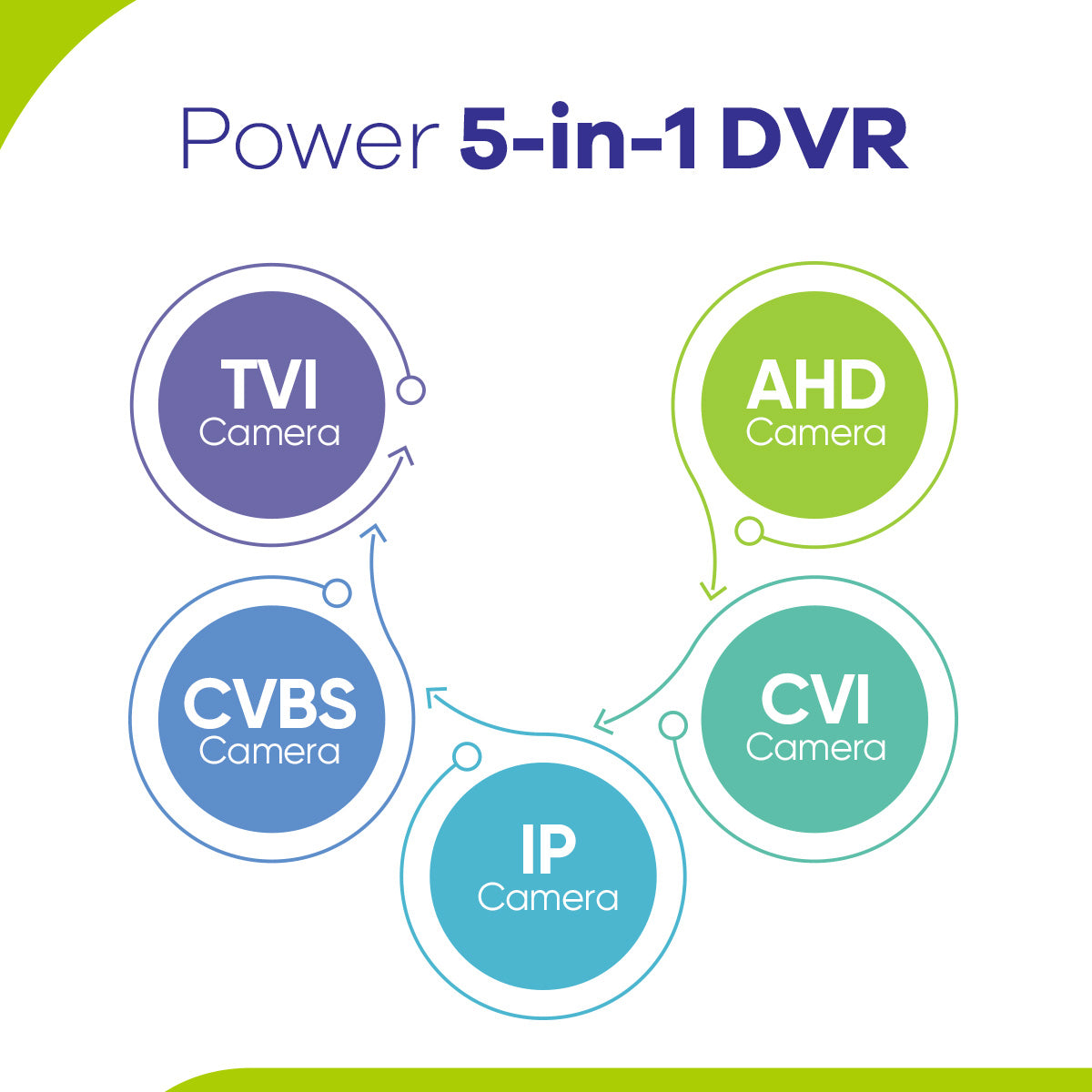

Expandable 5-in-1 DVR Compatibility
The powerful compatible DVR can work with all SANNCE and third-party cameras. You can even connect the smart home security system to third-party platforms such as Blue Iris and Synology, to better manage your devices.
View Anytime & Anywhere
Stay in total control all the time. Whether you're using a smartphone, tablet, or computer. The home & business security camera system will notify you in seconds with motion alerts when suspicious motions are detected.
Reliable IP66 Waterproof
Built with IP66 waterproof rating, the surveillance video camera is designed to survive challenging weather conditions (40 °F – 140 °F). Just install the camera wherever you want, indoors & outdoors, to get 24/7 protection, all year round.
Download DN41CK+C51ES Specification

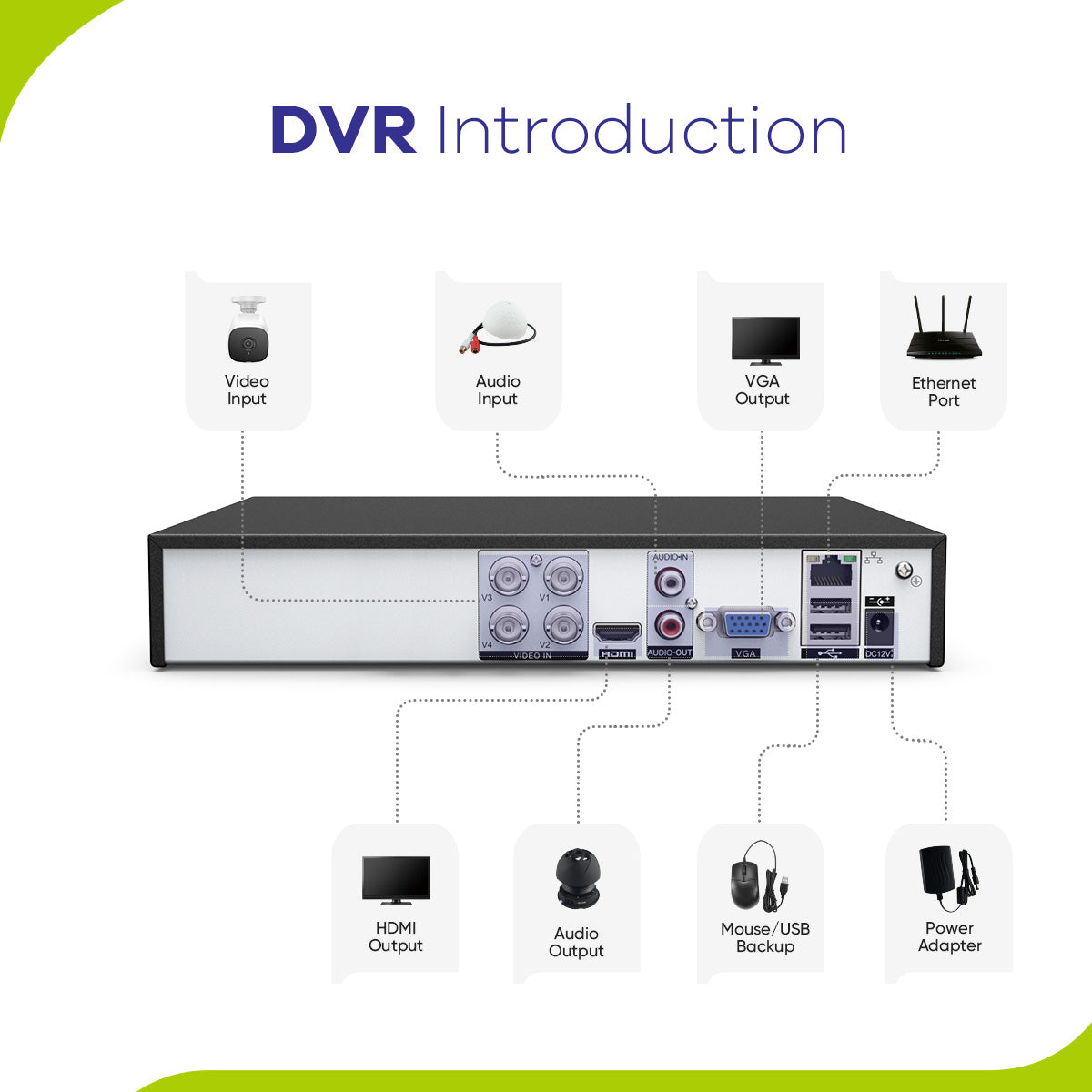

DVR (Model Number: DN41CK) |
||

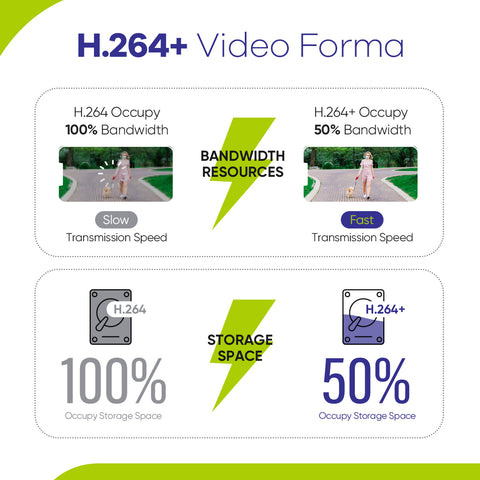

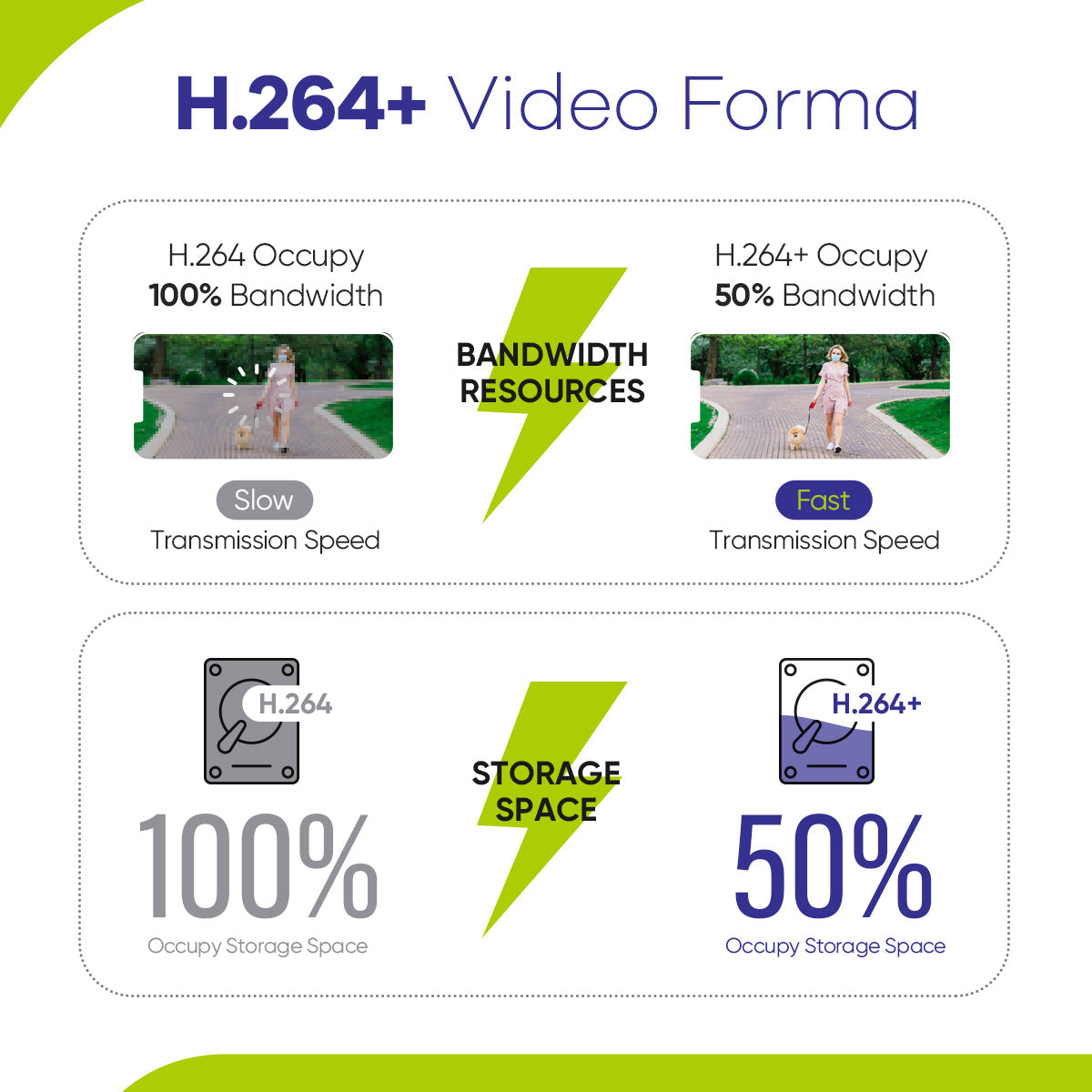

Video & Audio | Video Compression | H.264+/H.264 |
Video Input | 4CH HD Analog | |
Video Output | HDMI and VGA up to 1080p | |
Audio Input | 1CH RCA; 8CH via Coaxial Cable | |
Audio Output | 1CH RCA | |
Analog HD Recording Resolution | 1080p Lite (960 X 1080) | |
Analog HD Playback Resolution | 1080p Lite (960 X 1080) | |
IPC Recording Resolution | 1CH up to 2MP | |
IPC Playback Resolution | 2MP | |
Max. Playback Channel | 4CH | |
Protocols | Support | |
Hard Drive | HDD | 1 SATA Interface |
HDD Capacity | Up to 6 TB Capacity | |
General | Network Interface | RJ45 X1 (10/100 M) |
USB | USB 2.0 X2 | |
Operating Power | DC 12 V | |
Working Temperature | 14 °F – 131 °F/-10 °C – 55 °C | |
Dimensions (W X H X D) | 10.2" X 8.7" X 1.8''/260 X 222 X 45 mm | |
Weight (Without Hard Disk) | 2.2 lbs./1 kg (Without HDD) | |

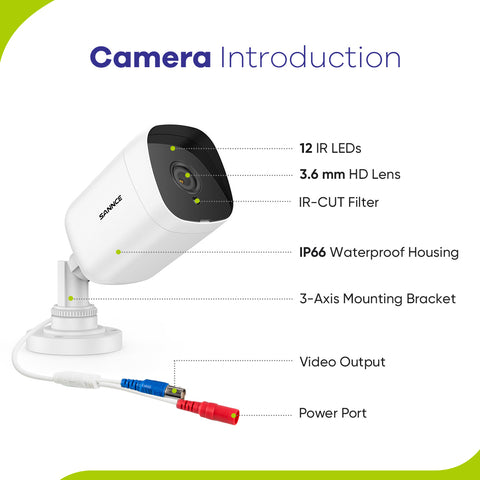

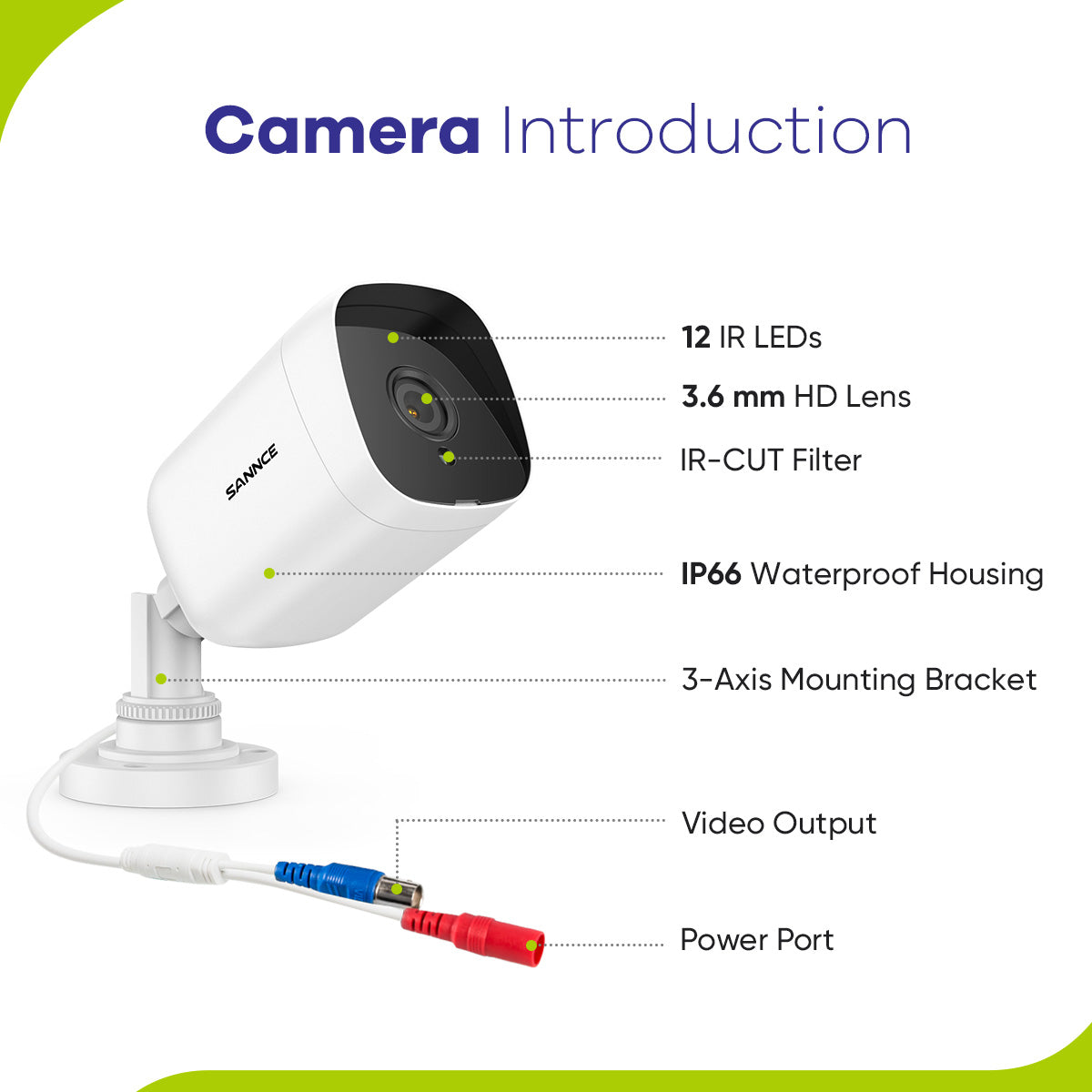

Camera (Model Number: C51ES) |
||
Camera | Video Resolution | 1080p (1920 X 1080@30fps) |
Signal System | PAL/NTSC | |
Image Sensor | 1/4" Progressive Scan CMOS | |
Lens | 3.6 mm | |
Min. Illumination | 0.02 Lux@(F1.2 AGC ON); 0 Lux with IR on | |
Angle of View | 80.7° | |
Number of Infrared LEDs | 1 | |
Night Vision Distance | Up to 100 ft/30 m | |
DNR | DNR | |
Wide Dynamic Range | Digital WDR | |
IR-Cut Filter | Yes | |
Video Output | HD BNC X1 | |
General | Housing | Metal & Plastic |
Color | Black | |
Operating Power | DC 12 V | |
Operating Temperature | -40 °F – 140 °F/-40 °C – 60 °C | |
Indoor/Outdoor | Indoor/Outdoor | |
Weatherproof Rating | IP66 | |
Dimensions (L X W X H) | 3.38” X 2.67” X 2.67”/85.4 X 76.12 X 76.12 mm | |
Weight | 0.33 lb./150 g |
DVR (Model Number: DN41CK) |
|
Video & Audio | |
Video Compression | H.264+/H.264 |
Video Input | 4CH HD Analog |
Video Output | HDMI and VGA up to 1080p |
Audio Input | 1CH RCA; 8CH via Coaxial Cable |
Audio Output | 1CH RCA |
Analog HD Recording Resolution | 1080p Lite (960 X 1080) |
Analog HD Playback Resolution | 1080p Lite (960 X 1080) |
IPC Recording Resolution | 1CH up to 2MP |
IPC Playback Resolution | 2MP |
Max. Playback Channel | 4CH |
ONVIF Protocols | Support |
Hard Drive | |
HDD | 1 SATA Interface |
HDD Capacity | Up to 6 TB Capacity |
General | |
Network Interface | RJ45 X1 (10/100 M) |
USB | USB 2.0 X2 |
Operating Power | DC 12 V |
Working Temperature | 14 °F – 131 °F/-10 °C – 55 °C |
Dimensions (W X H X D) | 10.2" X 8.7" X 1.8''/260 X 222 X 45 mm |
Weight (Without Hard Disk) | 2.2 lbs./1 kg (Without HDD) |
Camera (Model Number: C51ES) |
|
Camera | |
Video Resolution | 1080p (1920 X 1080@30fps) |
Signal System | PAL/NTSC |
Image Sensor | 1/4" Progressive Scan CMOS |
Lens | 3.6 mm |
Min. Illumination | 0.02 Lux@(F1.2 AGC ON); 0 Lux with IR on |
Angle of View | 80.7° |
Number of Infrared LEDs | 1 |
Night Vision Distance | Up to 100 ft/30 m |
DNR | DNR |
Wide Dynamic Range | Digital WDR |
IR-Cut Filter | Yes |
Video Output | HD BNC X1 |
General | |
Housing | Metal & Plastic |
Color | Black |
Operating Power | DC 12 V |
Operating Temperature | -40 °F – 140 °F/-40 °C – 60 °C |
Indoor/Outdoor | Indoor/Outdoor |
Weatherproof Rating | IP66 |
Dimensions (L X W X H) | 3.38” X 2.67” X 2.67”/85.4 X 76.12 X 76.12 mm |
Weight | 0.33 lb./150 g |

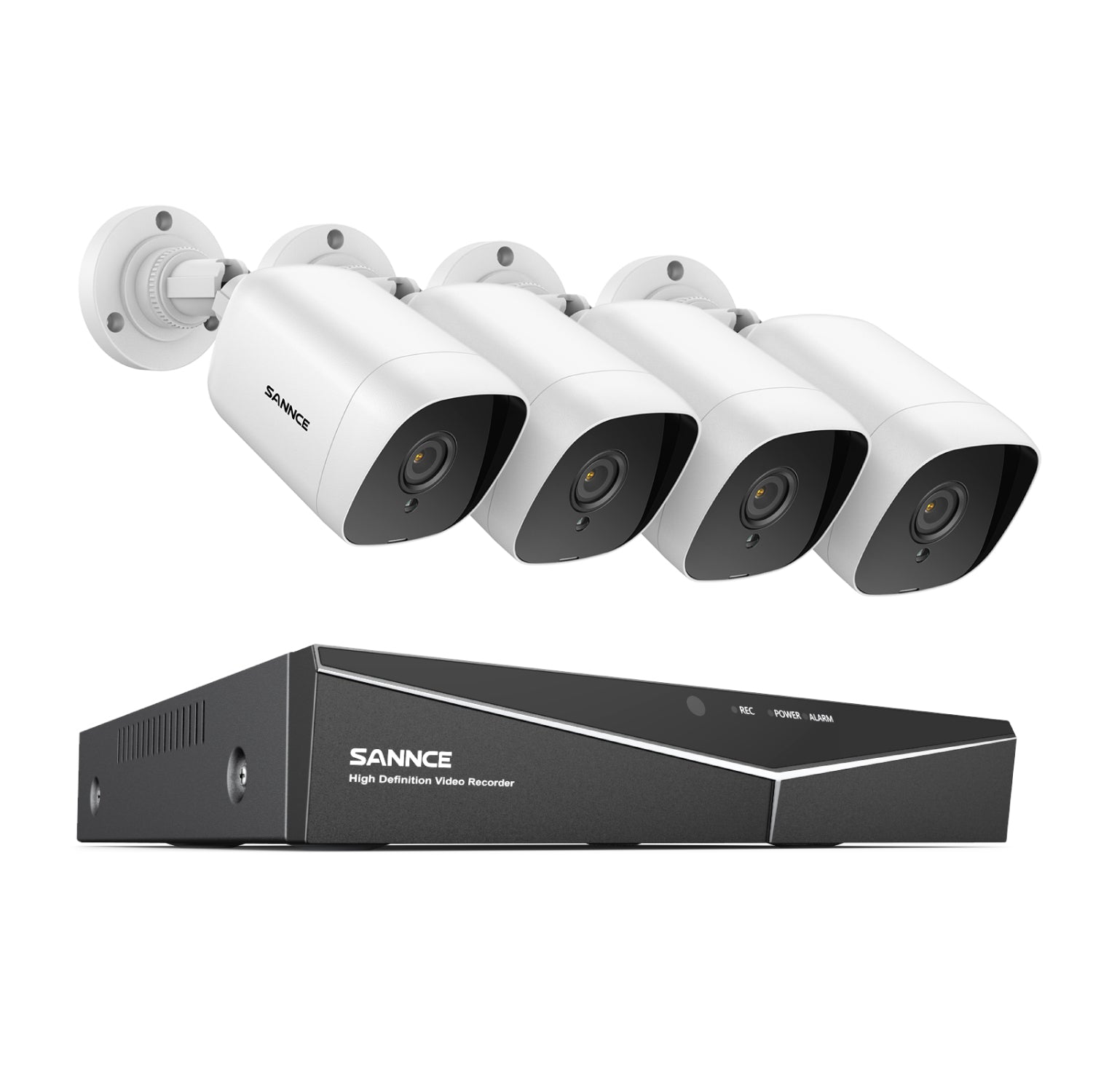

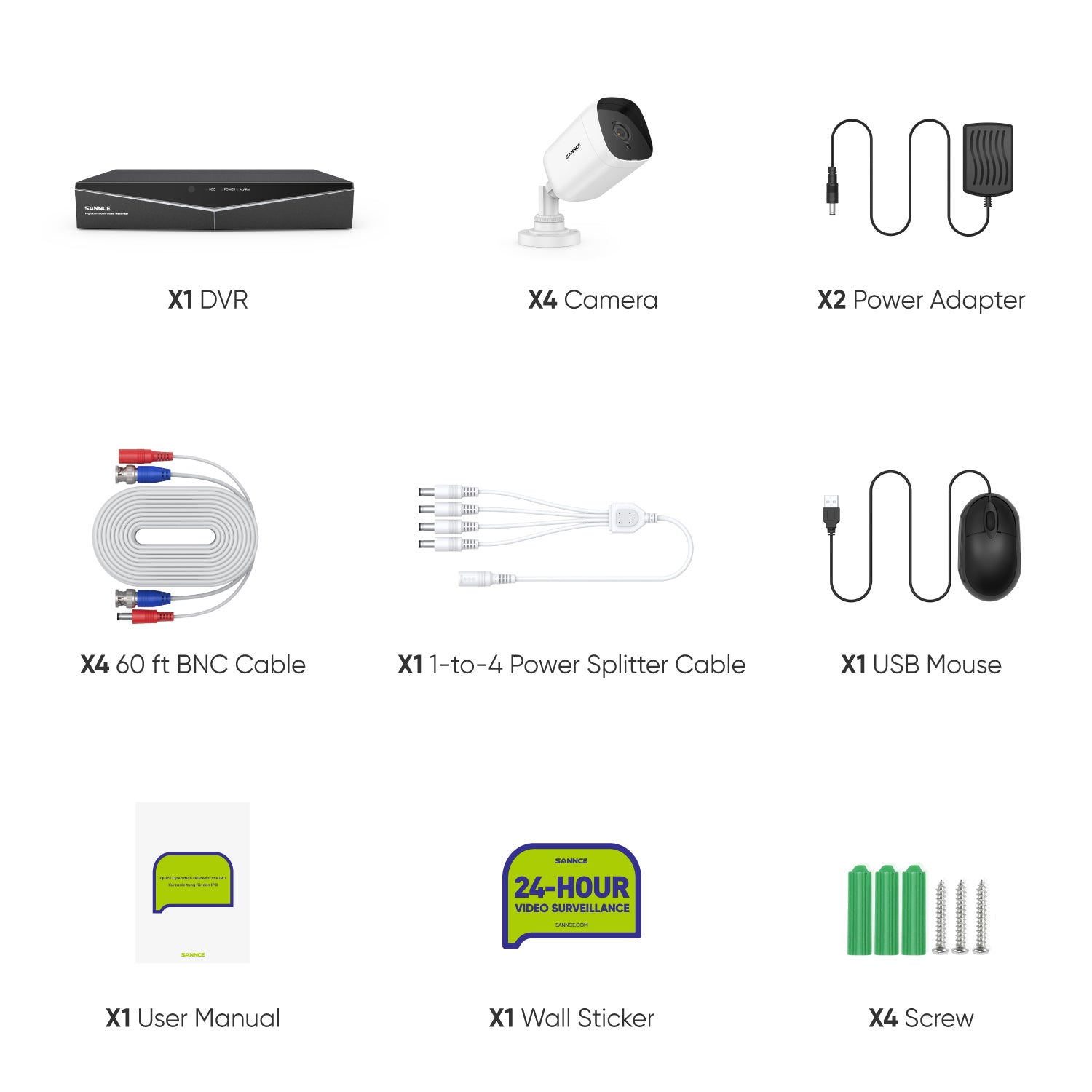

What’s in the Box
1X DVR
4X Cameras
4X 60 ft/18 m BNC Cables
2X Power Adapters
1X 1-to-4 Power Splitter
1X USB Mouse
4X Mounting Screw Bags
1X User Manual
