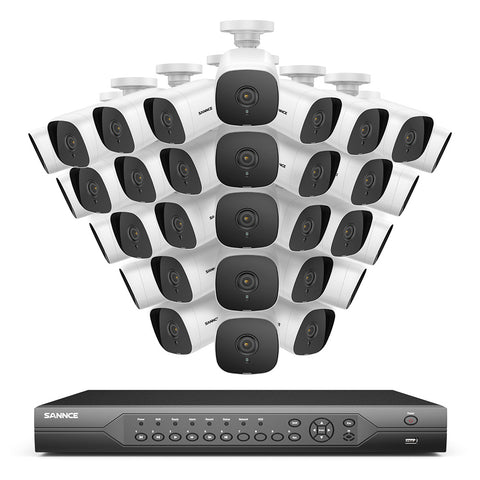

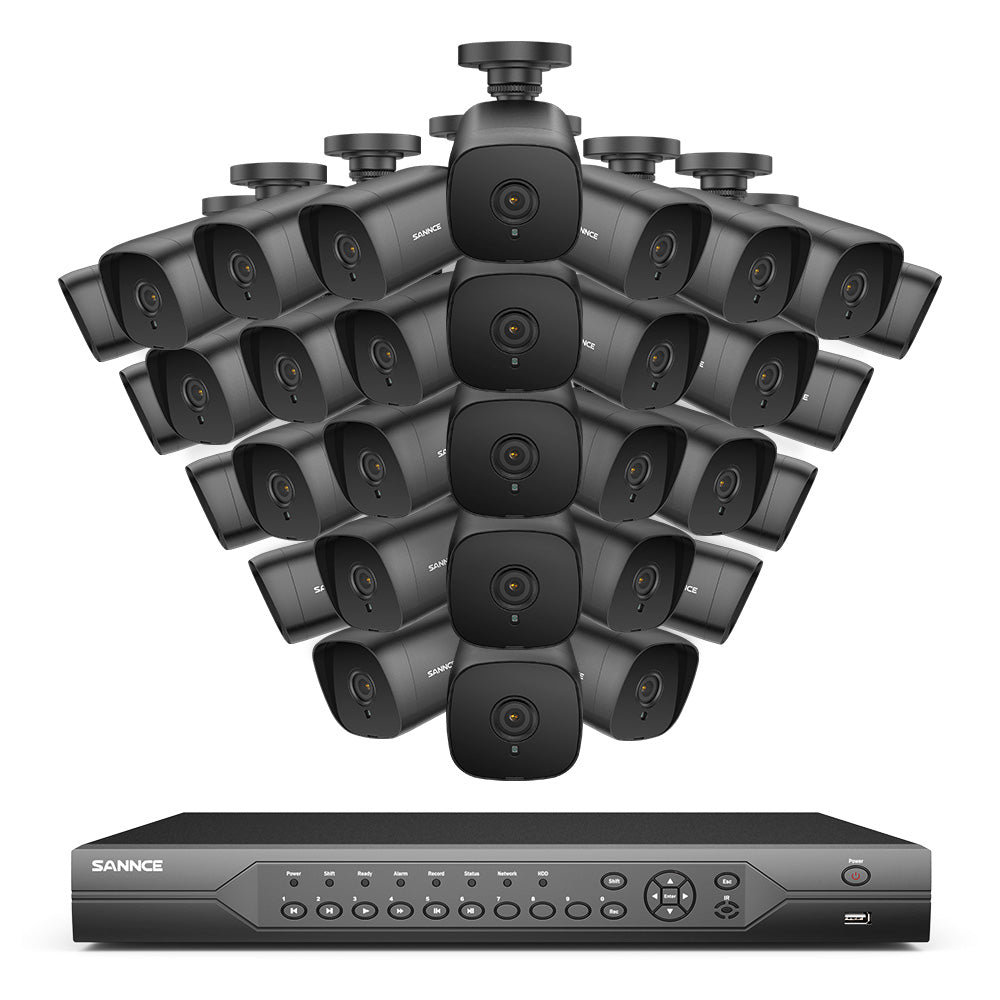

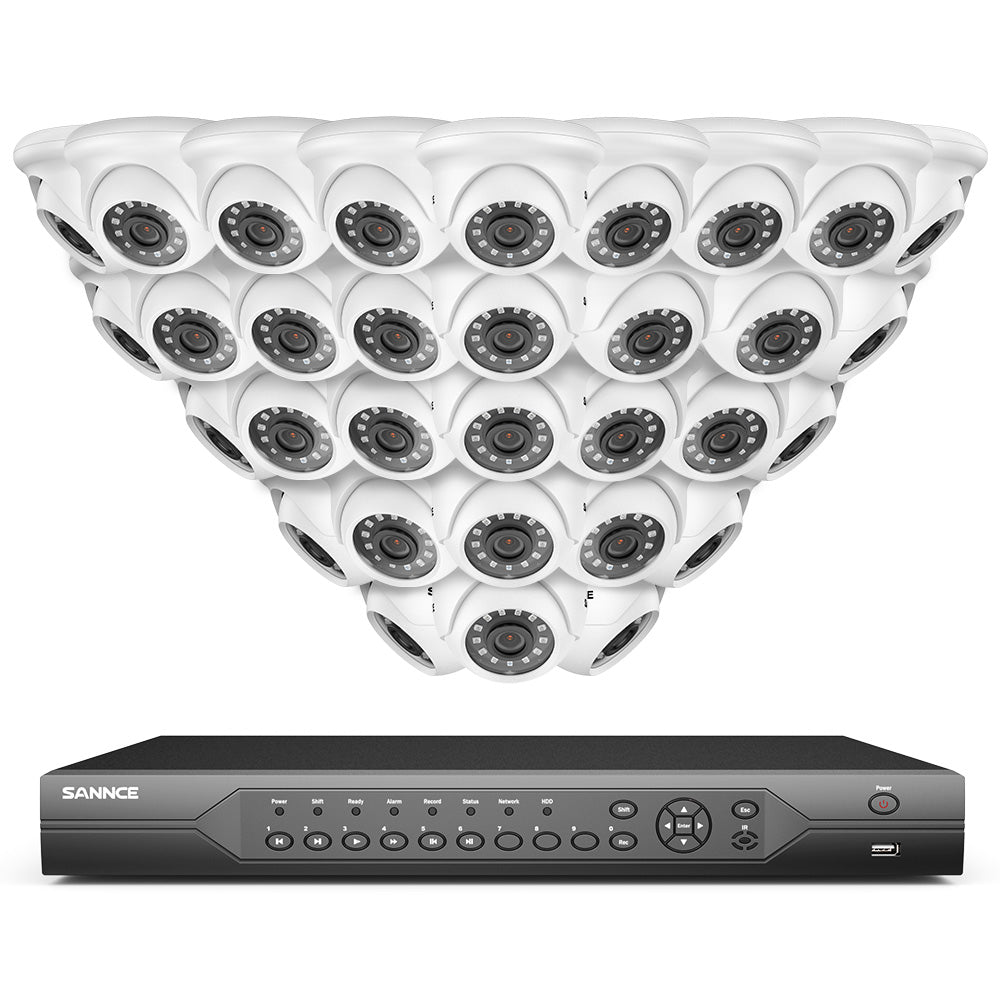

1080p 32 Channel 32 Camera Outdoor Wired Security CCTV System, Smart DVR With Human Detection, 100 ft Infrared Night Vision

Appearance :
Color :
HDD Capacity :
Terms & Conditions

Free Shipping & Returns

Quality Guarantee

Top customer service

Main Features:

  • 5MP high-definition live viewing, recording & playback
  • Support advanced H.264+ Video Compression

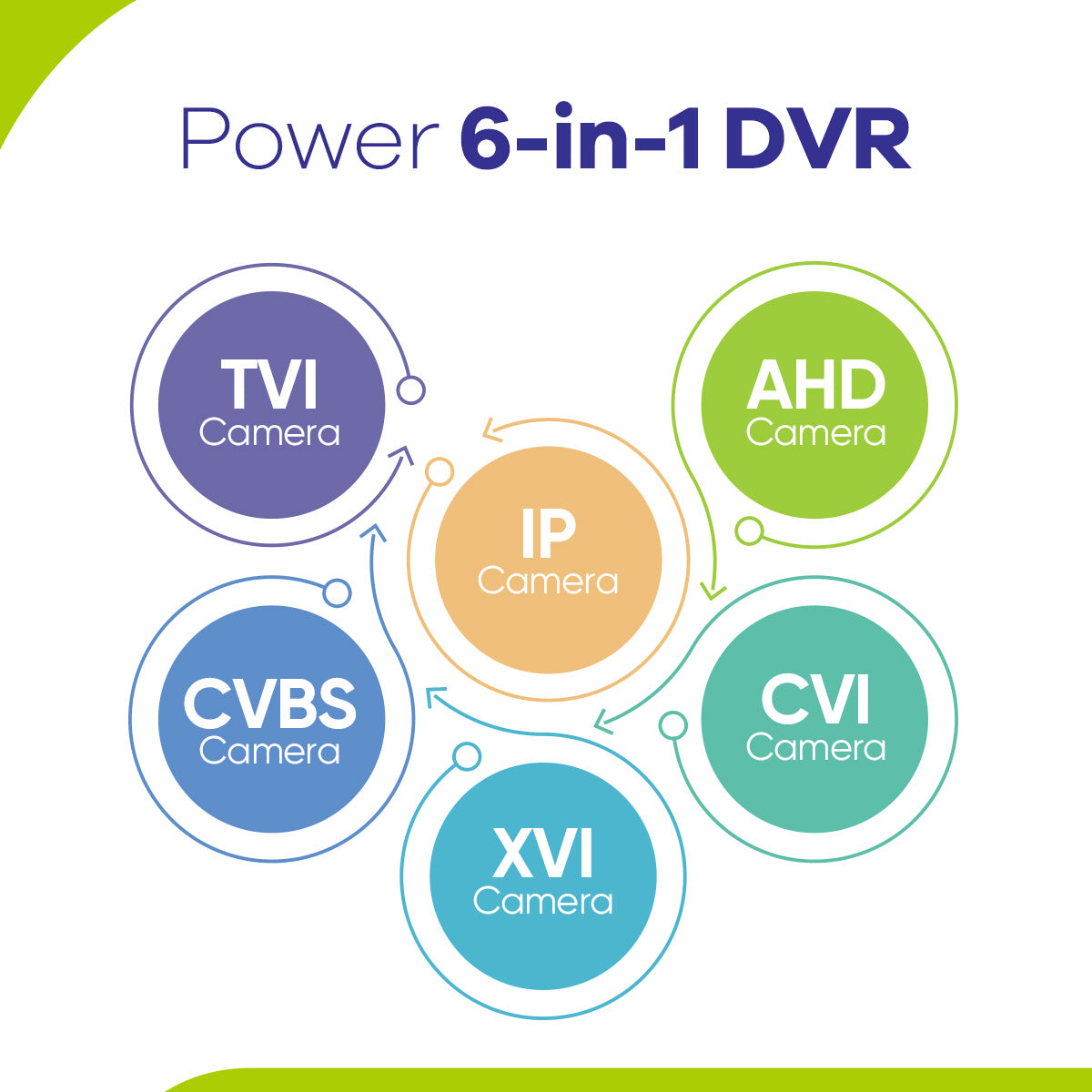

  • Support TVI/AHD/CVI/CVBS/IPC input
  • Supports iPhone、iPad、Android mobile remote monitoring

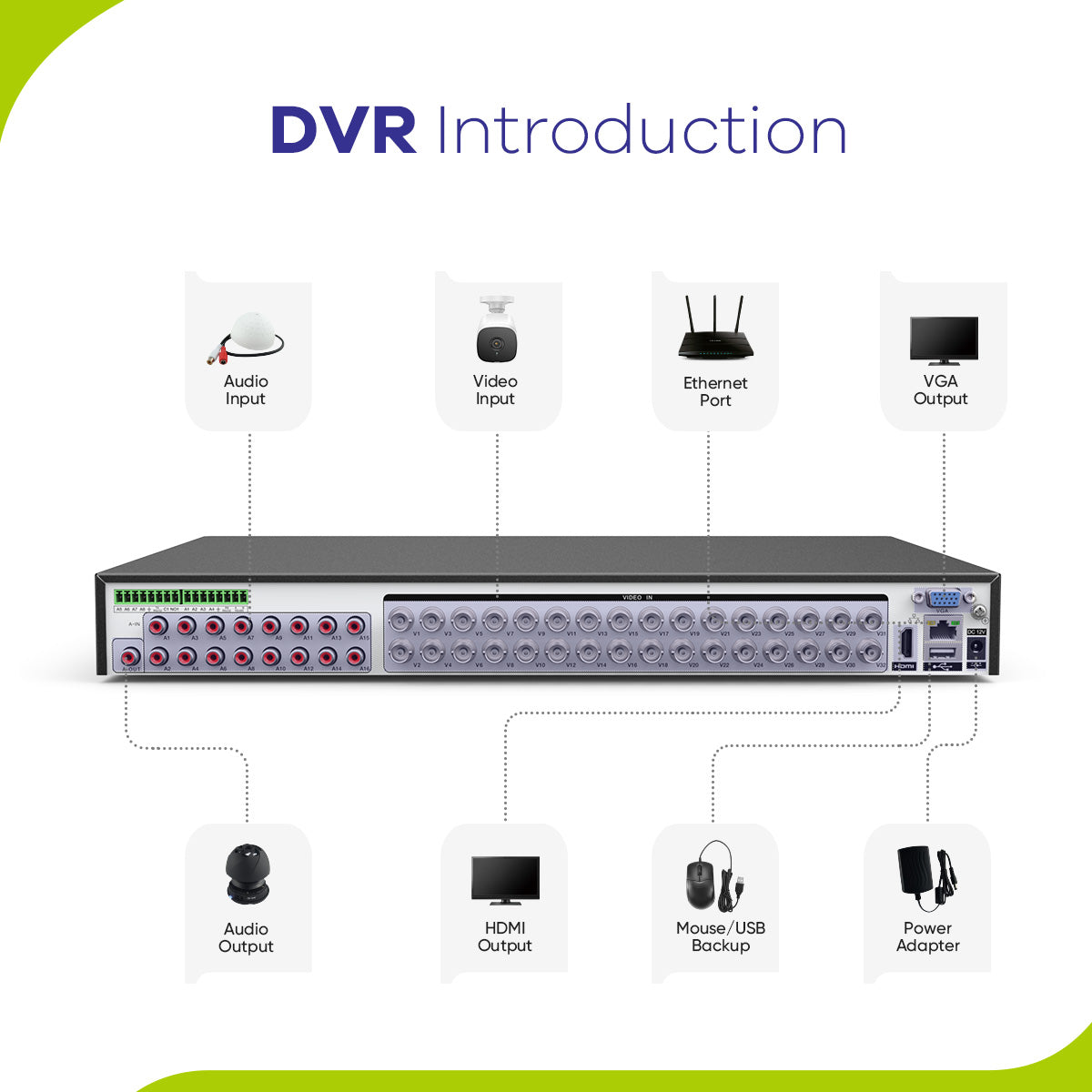

  • [5MP Lite Powerful & Expandable 5-in-1 DVR]-- The hybrid digital video recorder combing the features of DVR/NVR, which supports up to 32pcs 5MP Lite/1080P/720P TVI, AHD, CVI, CVBS analog or 16pcs analog and 16pcs IP cameras. In addition, the DVR supports 16ch video input, 8ch alert input and 1ch alert output. So, you may match any type of camera to your needs
  • [Smart Motion Alerts & Human Detection]-- With the advanced motion detection algorithm, by setting up human detection, you will get motion detection alerts only when people and vehicles are in the frame. You are minimizing unwanted alerts triggered by bugs, animals, leaves and so on.
  • [Remote Access with All Your Devices]-- No monthly fee to worry about. It’s just a breeze to control the DVR remotely with the Free SANNCE App, VMP App and browser. Also, you can watch real-time video or remote playback recording video easily with your IOS/Android devices. Keep tabs on your home & business when you’re working, shopping or traveling.
  • [Compatible H.264+ Video Format]-- H.264+ coding saves more videos and consumes less bandwidth than H.264 systems. The most compatible video compression technology provides you with ultra-smooth 5MP Lite streaming without all the data.
  • [100 ft EXIR Night Vision]-- The cutting-edge EXIR technology helps the outdoor video camera to deliver crystal-clear night vision images from up to 100 ft away, even in complete darkness. Ensure that your premise and property are protected from dusk to dawn.
  • [High-Quality 1080p Lite Stream]-- The smart home & business security system delivers high quality crisp 1080p lite images. Digital WDR enables the outdoor video camera to record sharper videos in challenging bright/dark lighting situations.
  • [Dependable IP66 Waterproof]-- IP66 waterproof rating allows the weather & corrosion-resistant wired camera to be durable enough to use outside & inside. Just install the outdoor wired camera at your home, office, factory, warehouse, garage, or anywhere you like, to get 24/7/365 monitoring.

What's in the Box?

  • 1 x 32-Channel 5MP DVR
  • 32 x 2MP Cameras
  • 1 x DC12V 4A Power Adapter
  • 32 x 60 ft/18 m BNC Cables
  • 8 x Power Adapters for Cameras
  • 8 x 1-to-4 Power Splitter
  • 32 x Mounting Screw Bags
  • 1 x USB Mouse
  • 1 x User's Manual
(Model Number: DT31BZ)
Video & Audio Video Compression H.264+
Video Input 32CH HD Analog
Video Output HDMI up to 4K
Audio Input / Output 16/1CH RCA
Analog HD Recording Resolution 5M-N
Analog HD Playback Resolution 5M-N
Channel Type Analog&IPC
IPC Recording Resolution 4K
Max. Playback Channel 4CH
Storage HDD 2 SATA Interface
HDD Capacity Up to 14 TB Capacity
General Network Interface RJ45 X1 (10/100 M)
USB USB 2.0 X2
Alarm input/output 8/1CH
Operating Power DC12V 4A
Consumption <10W (Without HDD)
Working Temperature 14 °F – 131 °F /-10 °C – 55 °C
Dimensions (W X H X D) 17.5" X 11.9" X 3.3”/445 X 302 X 58 mm
Weight (Without Hard Disk)  ≤ 6.6 lbs./3 kg (Without HDD)
(Model Number: CT1GL, CTIGP, CT1GM,CT1GN)
Camera Video Resolution 1080p (1920 X 1080)
Signal System PAL/NTSC
Image Sensor 1/4" Progressive Scan CMOS
Lens 3.6 mm
Min. Illumination 0.02 Lux@(F1.2 AGC ON); 0 Lux with IR on
Angle of View 70°
Number of Infrared LEDs 12
Night Vision Distance Up to 100 ft/30 m
Wide Dynamic Range Digital WDR
IR-Cut Filter Yes
Video Output HD BNC X1
General Housing Metal & Plastic
Color Black
Operating Power DC 12 V
Operating Temperature -40 °F – 140 °F/-40 °C – 60 °C
Indoor/Outdoor Indoor/Outdoor
Weatherproof Rating IP66
Dimensions (L X W X H)-Turret 3.54” x3.54” x 2.95” / 90 x 90 x 75mm
Dimensions (L X W X H)-Bullet 6.49” x2.36” x 2.36” / 165 x 60 x 60mm
Weight 0.33 lb./150 g
