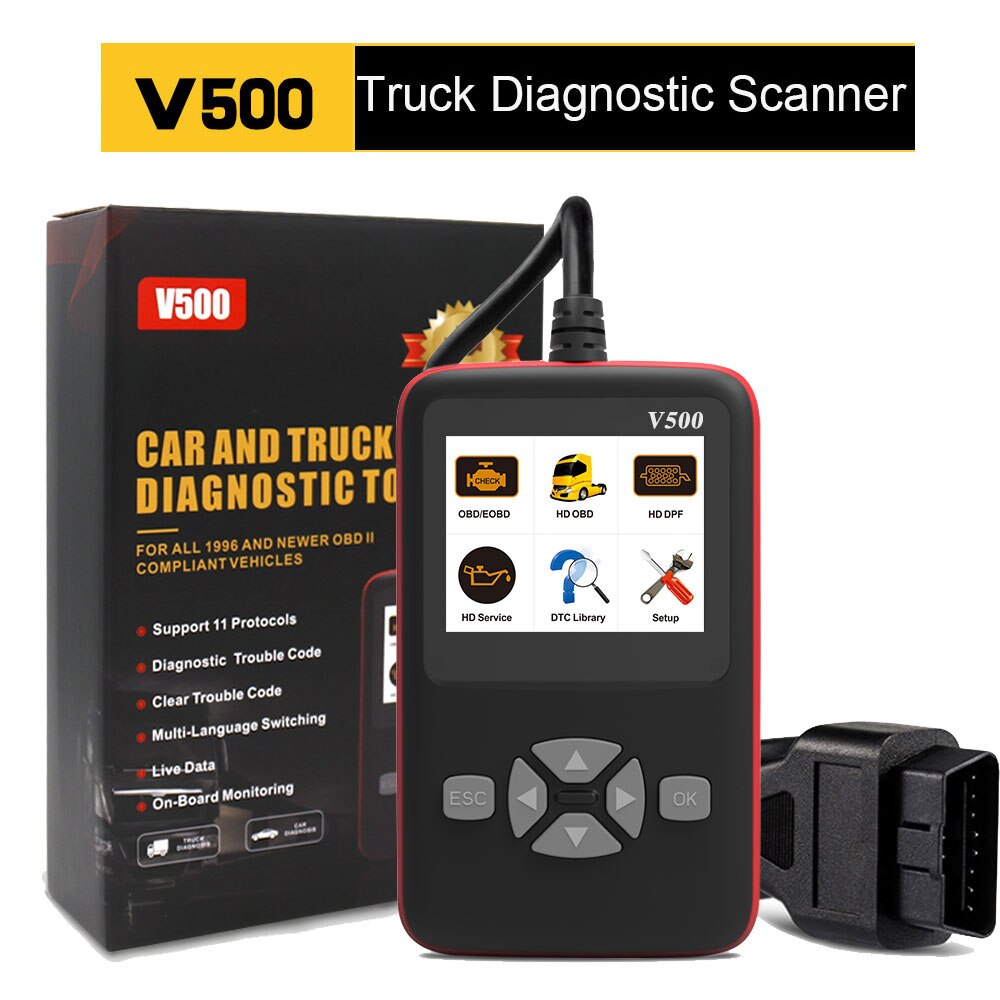

Car Truck OBD2 Scanner Heavy Duty Truck Automotive 2 in 1 DPF Oil Reset CR-HD Fault Diagnostic Code Reader Tool w/ Color Screen

V500
$159.99
$159.99
Terms & Conditions

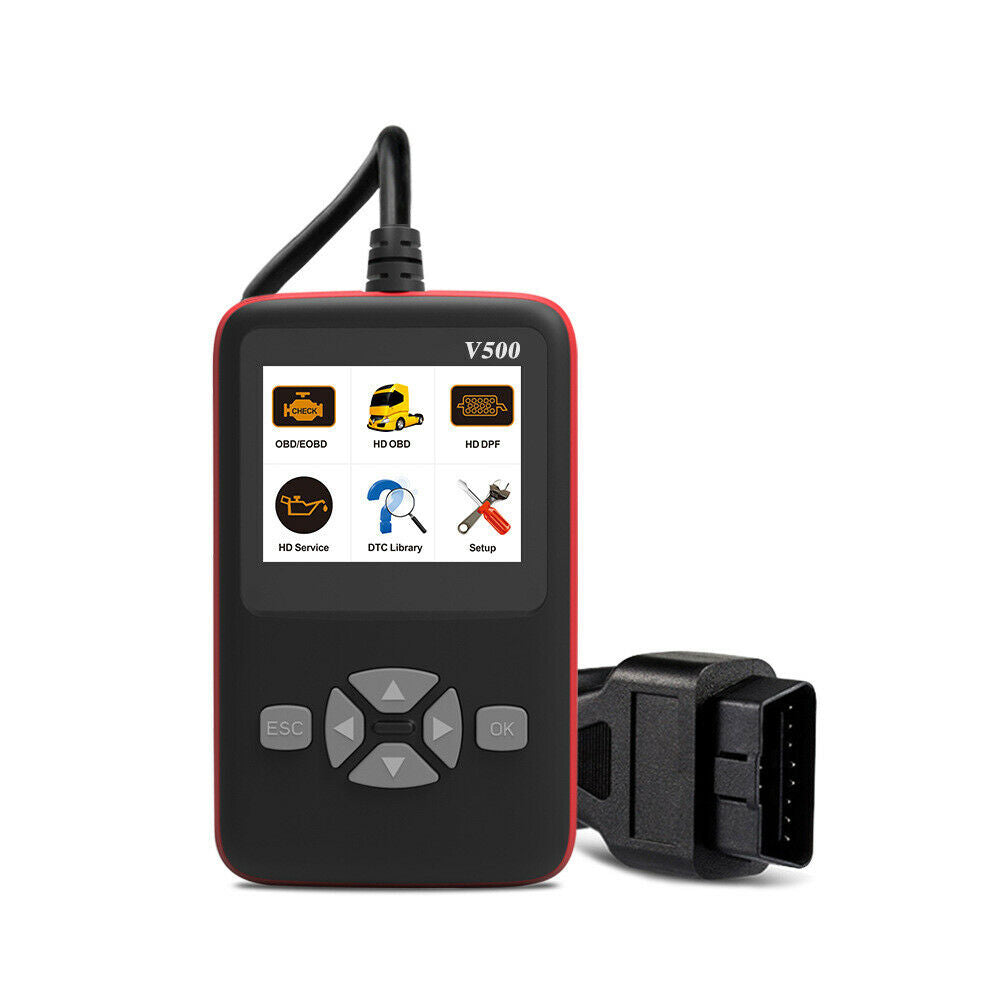

SANNCE Universal Car and Heavy Duty Truck OBD2 Fault Diagnostic Tool w/ Color Screen

  • Professional OBDII CR-HD Device Heavy Duty Vehicle Scanner Engine / DPF / Oil Reset Code Reader
  • Compatible with Freightliner Kenworth Peterbilt Volvo Mack Honda Toyota GM Ford, and more.
  • The V500 diagnostic tool is equipped with Full-OBDII-Capabilities that allow you to scan all engine readings and related trouble codes on any vehicle make and model 1996 year and newer
  • Easy-to-Use, scan the vehicle in minutes, simply plug it in and the device will boot up with Step-by-Step instructions; the diagnostic tool has a large, easy-to-read 2.8inch color display screen accompanied by a user-friendly interface that requires no additional software.

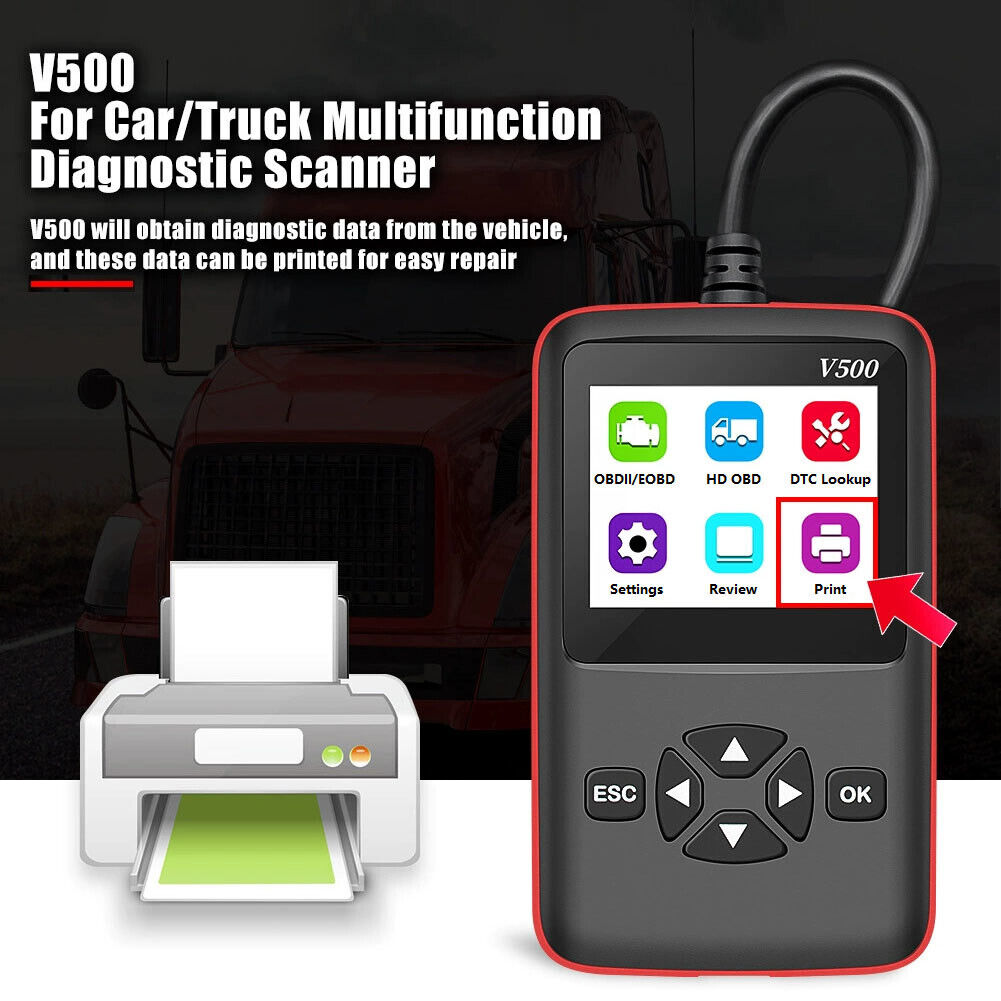

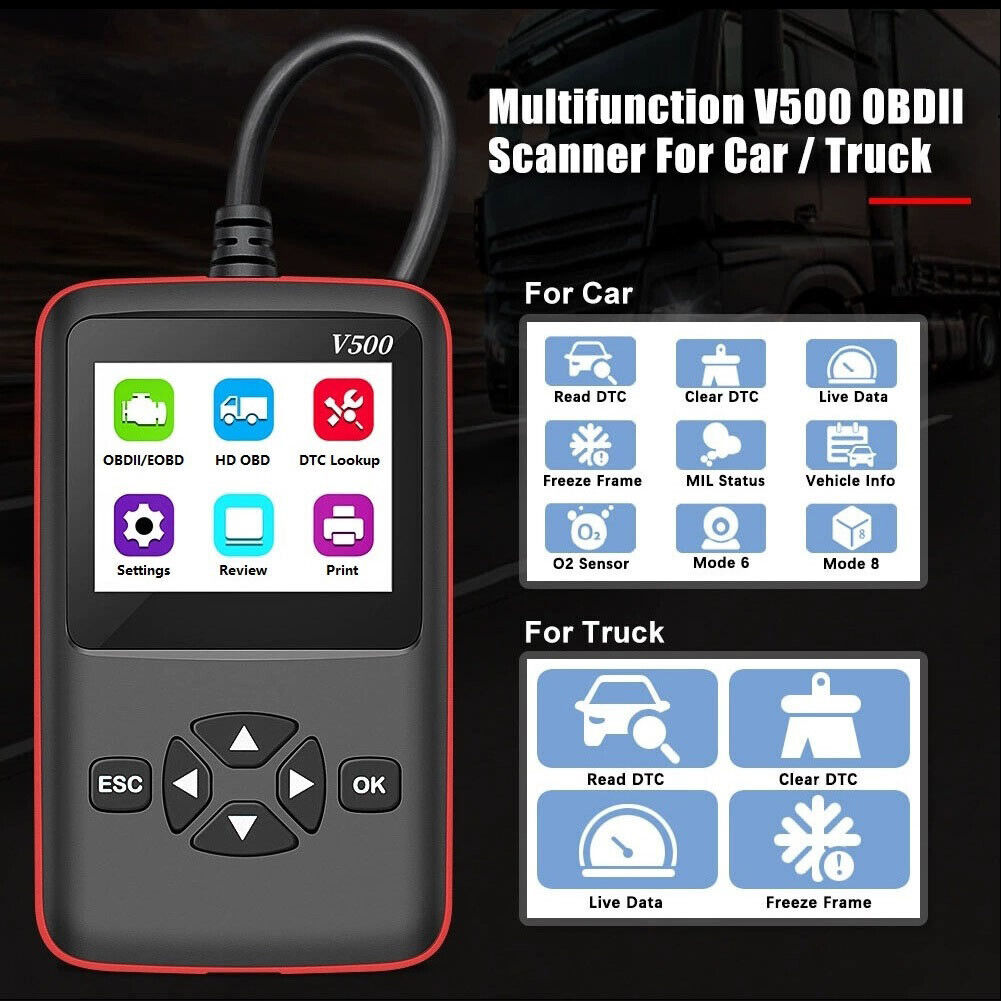

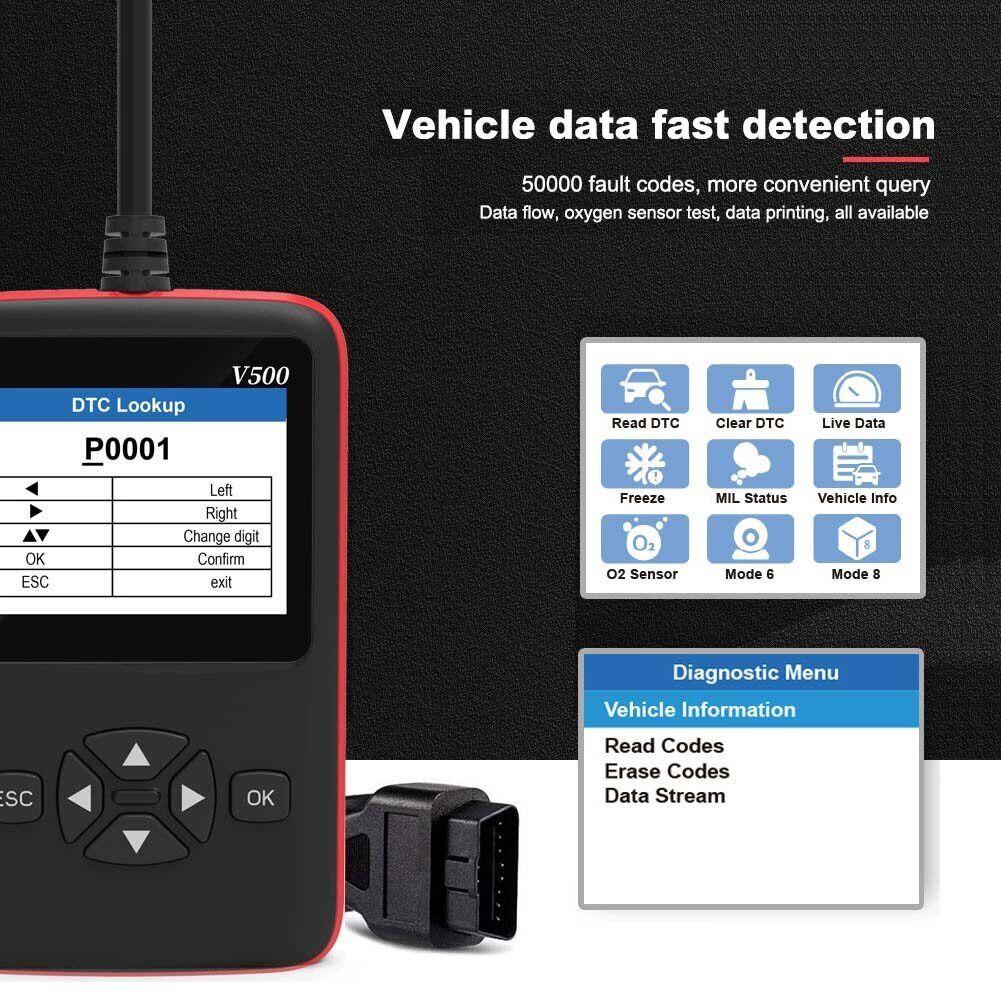

  • Full Practical OBDII Multi-Functions. This V500 Tool with DTC LookUp (Quick Explain DTCs), Vehicle Information (Identify Vehicle Information of VIN, CINs, and CVNs), Freeze Frame Data (Review the Parameters and Information Stored when a Fault Occurs), O2 Sensor Test, Read PCM Live Data Stream, Check the battery, Easy smog test - I/M Readiness function and more.
Features & Functions:

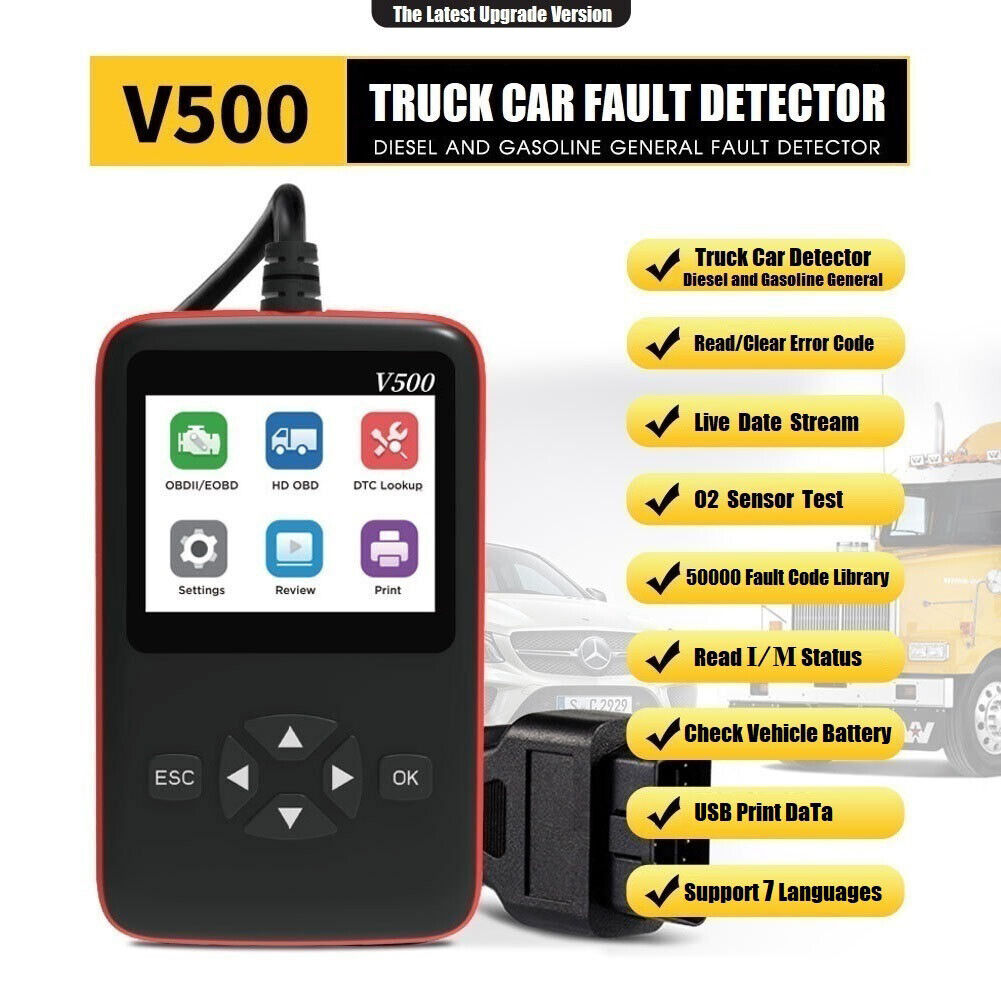

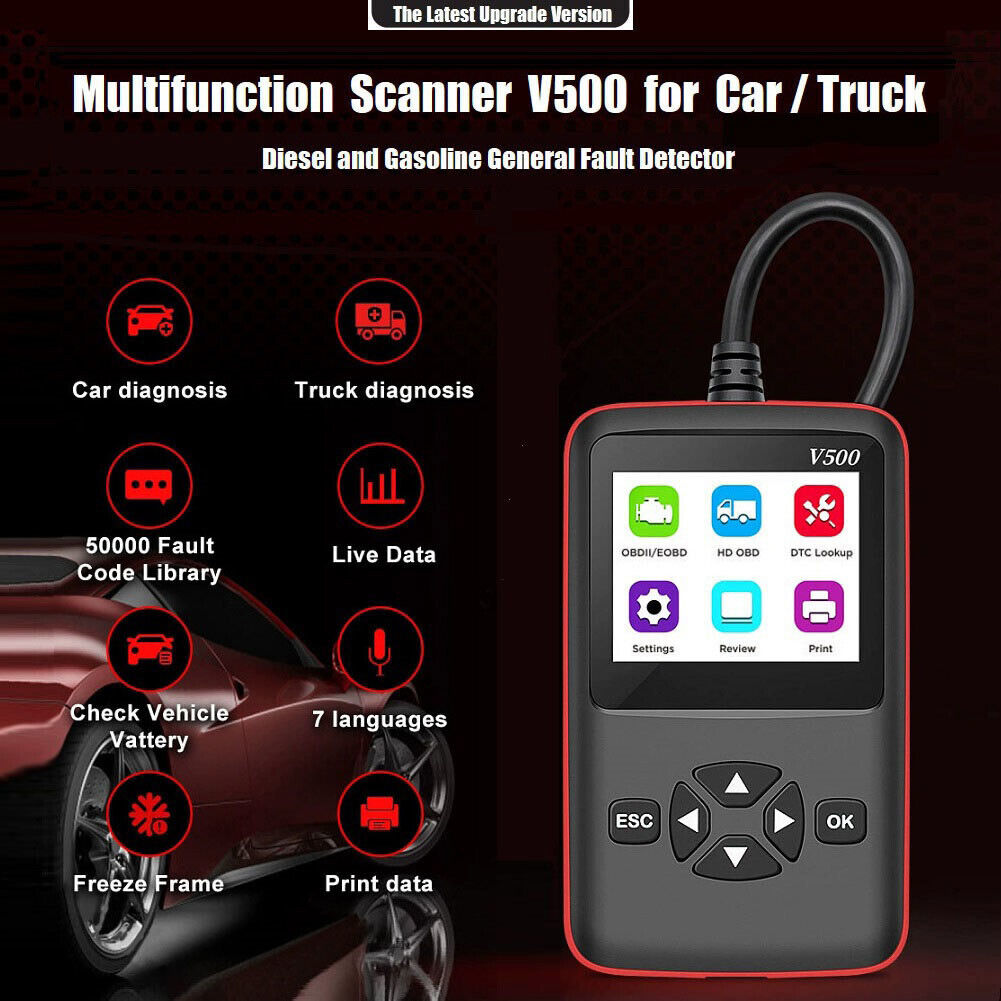

  • Hand-held OBD2 scanner for heavy-duty trucks and vehicles

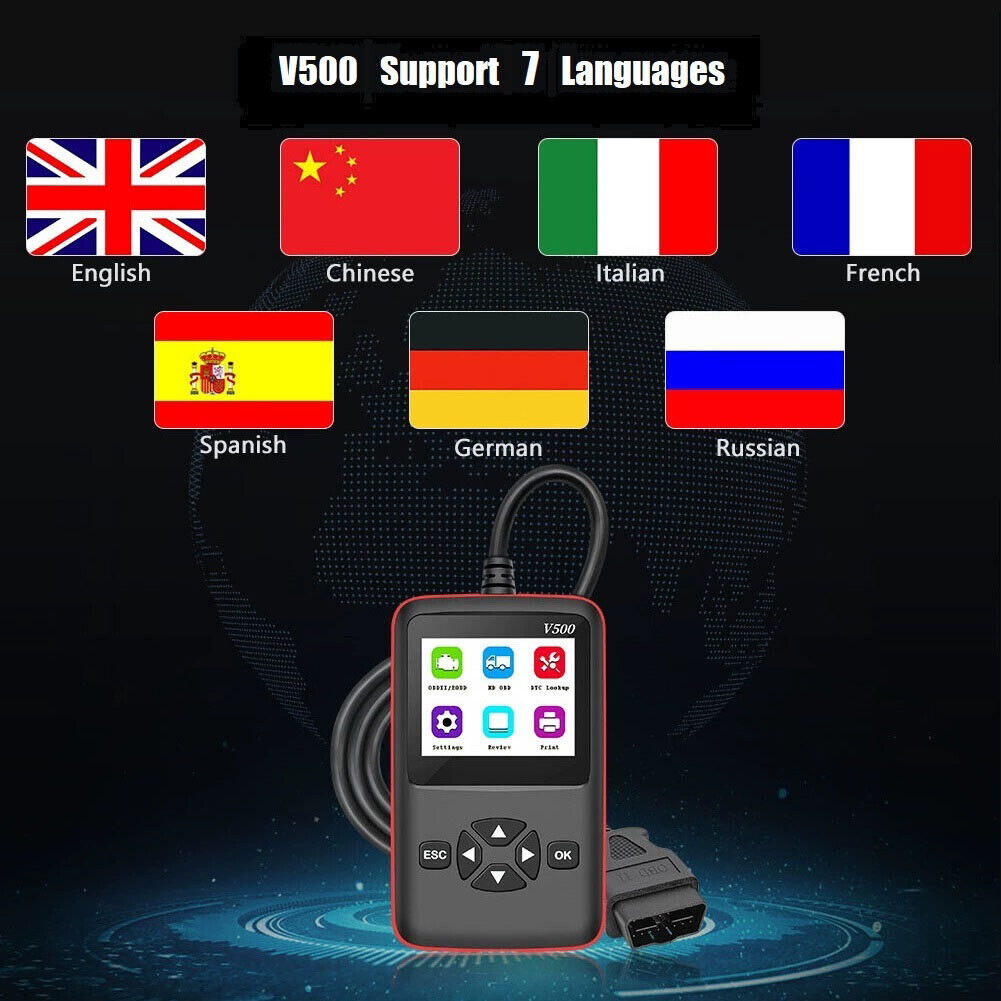

  • Support 7 Languages: English, French, German, Italian, Spanish, Russian, Chinese
  • 2.8" Color display screen
  • Support 11 kinds of protocols
  • With 6pin / 9pin Cable: For J1587/J1708 Truck

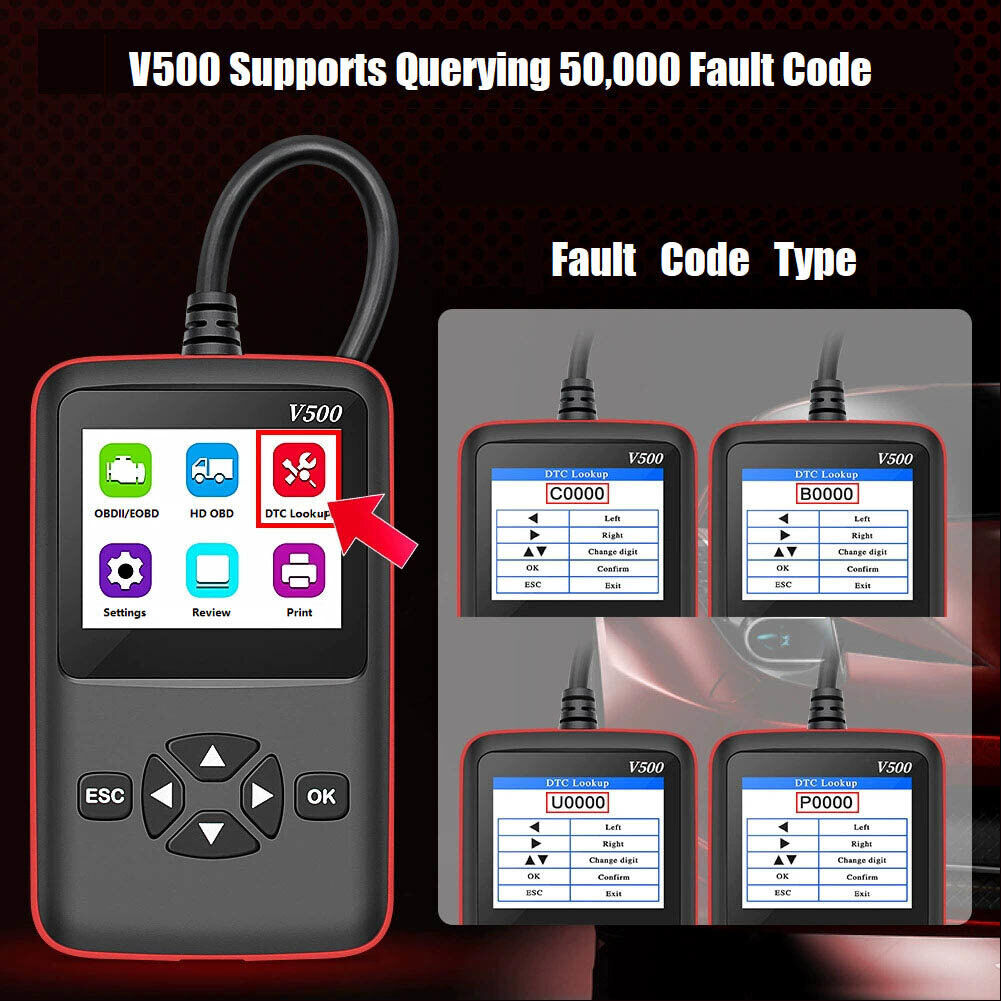

  • Read error diagnostic codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database)
  • Read Vehicle Fault Code
  • Clear error diagnostic codes and turn off MIL
  • Engine RPM
  • Calculate Load Value
  • Coolant Temperature
  • Fuel System Status
  • Vehicle Speed
  • Short-term Fuel Situation
  • Long-term Fuel Situation
  • Intake Manifold Pressure
  • Fuel Injection Timing Advance
  • Intake Air Temperature
  • Air Flow Rate
  • Absolute Throttle Position
  • Oxygen sensor voltages related to the short-term fuel situation
  • Fuel System Status
  • Fuel Pressure
  • Fuel Consumption Monitoring

Specifications:
  • Operating Voltage: DC9 to 16V
  • Working Current: 89mA
  • Operating Temperature: -20℃ to 65℃
  • Storage Temperature: -30℃ to 80℃
  • Weight: 689g

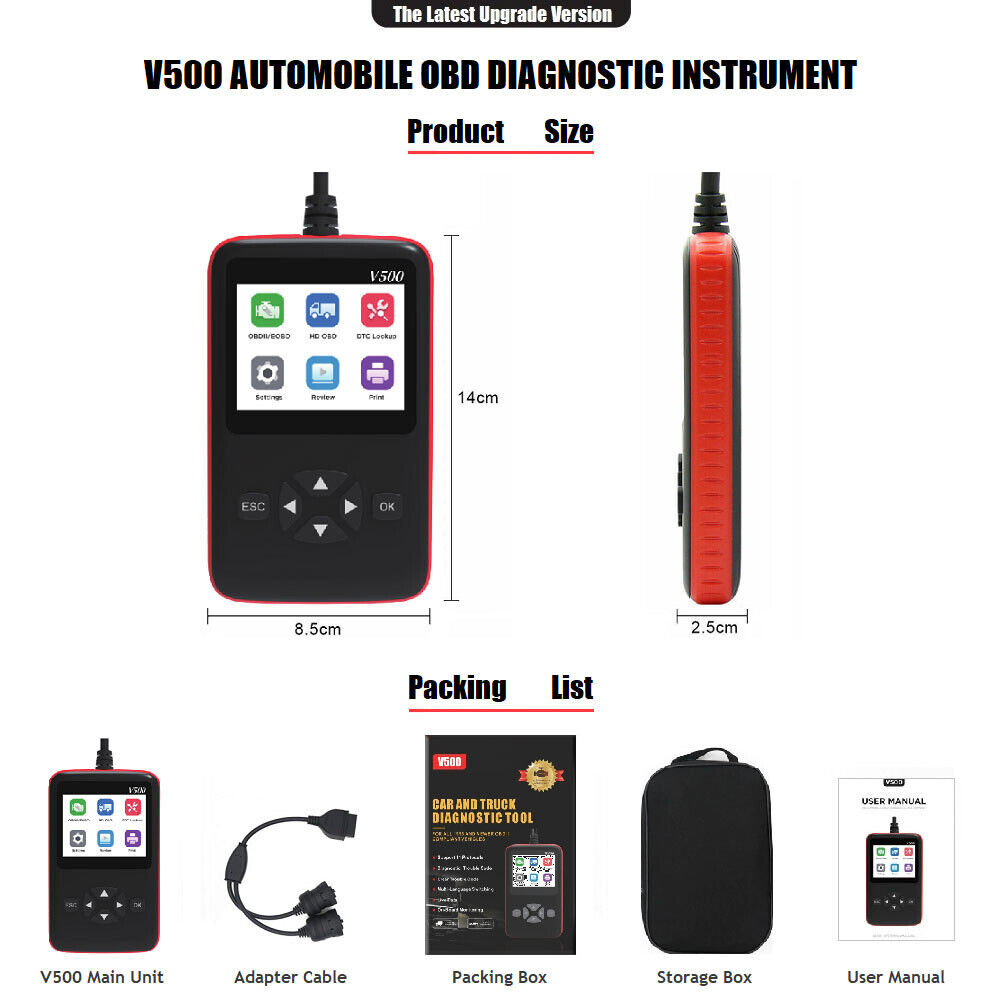

  • Size: 138.9 X 85 X 22 mm

Support Protocols for Cars:
  • SAE J1850 PWM (41.6 Kbaud)
  • SAE J1850 VPW (10.4 Kbaud)
  • ISO 9141-2 (5 baud init,10.4 Kbaud)
  • ISO 14230-4 KWP (5 baud init,10.4 Kbaud)
  • ISO 14230-4 KWP (fast init,10.4 Kbaud)
  • ISO 15765-4 CAN (11bit ID,500 Kbaud)
  • ISO 15765-4 CAN (29bit ID,500 Kbaud)
  • ISO 15765-4 CAN (11bit ID,2500 Kbaud)
  • ISO 15765-4 CAN (29bit ID,250 Kbaud)
  • ISO 1708
  • SAE J1939
For trucks:
  • Support Universal Truck Multi-systems diagnosis
  • Read codes & Erase Code for Trucks Engine/ ABS/ Brake/ AIRBAG/ Transmission, EPS, Fuel multi-systems
  • Sensor Live Data stream for multiple systems
  • Support DPF regeneration: for Maxxforce, Detroit, Cummins, ISUZU, HINO HD Truck
  • Support Oil Service Light Reset: for Maxxforce, Detroit, Cummins
Supported protocols for Trucks:
  • J1939
  • J1587/1708 (6/9PIN)
  • J1587/1708 (16PIN)

Package Included:
  • 1 x Truck Car Scan Tool
  • 1 x Adapter Cable
  • 1 x Storage Bag
  • 1 x User Manual
