See the World in High Definition
The home & business security system, with 1080p Full HD camera, deliver crystal-clear videos. View all events in 1080p clarity so you can see exactly what is happening inside & outside your home or office.
EXIR Night Vision Illuminates the Darkness
Forget grainy and blurry night vision images. The EXIR night vision camera reveals crisp night images no matter how dark the environment is. 100 ft night vision distance allows the security camera to monitor all activities. Never miss an event.

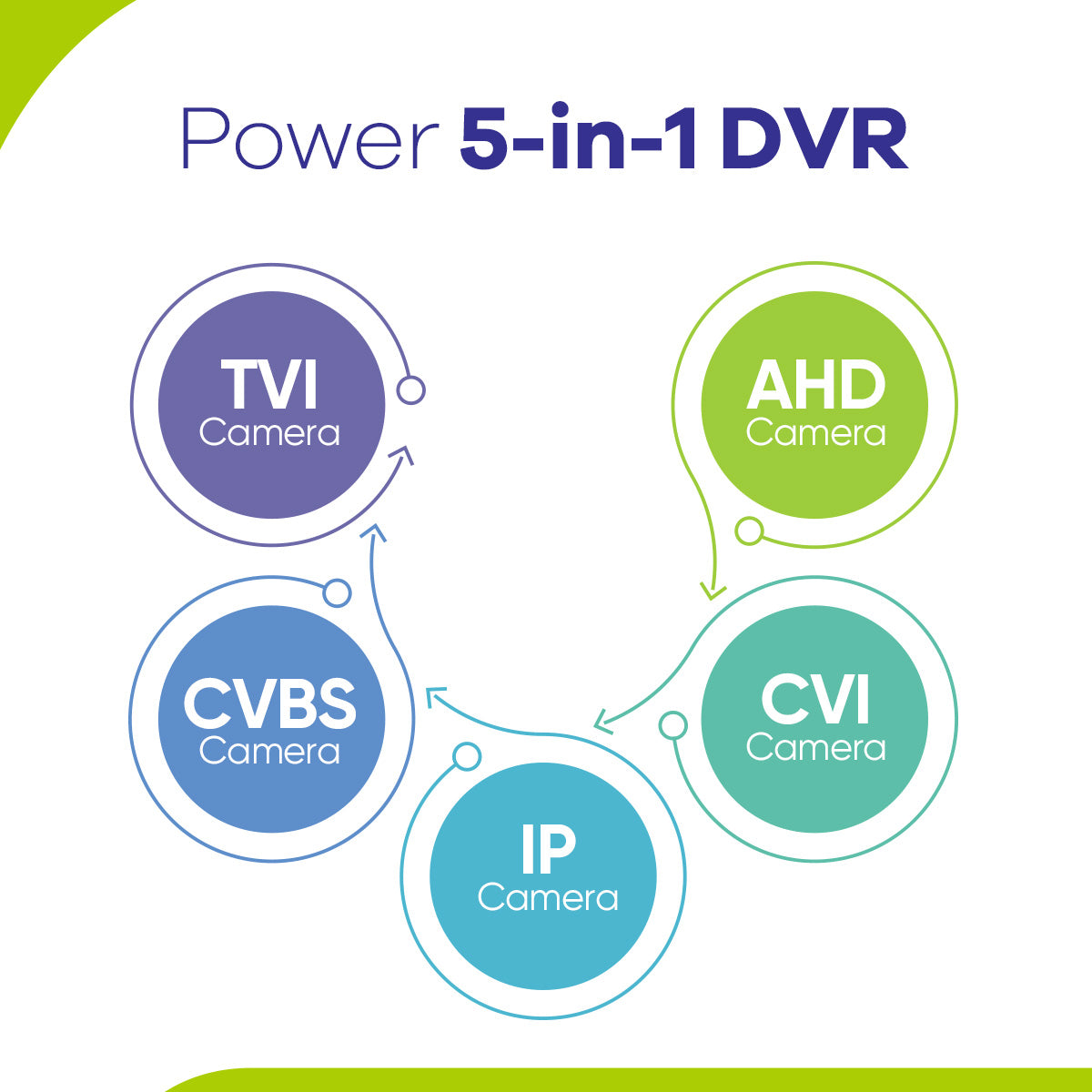

Powerful 5-in-1 DVR System
With ONVIF compatibility, the expandable 5-in-1 DVR system is compatible with all cameras of AHD, TVI, CVBS, CVI and IP type. The DVR can work with all SANNCE and third-party brands cameras to protect your property day & night.
View Anywhere & Anytime
Stay in total control via the app on your mobile devices. View live any time and receive instant email or mobile alerts whenever motion is detected. Always be the first to know who is there, and stop a potential break-in before it occurs.
Dependable IP66 Waterproof
IP66 waterproof rating enables the surveillance video camera to stand firmly regardless of extreme weather (-40 °F – 140 °F). Just install the camera at your home, office, warehouse, factory, and other indoor & outdoor places to get 24/7 protection, all year around.

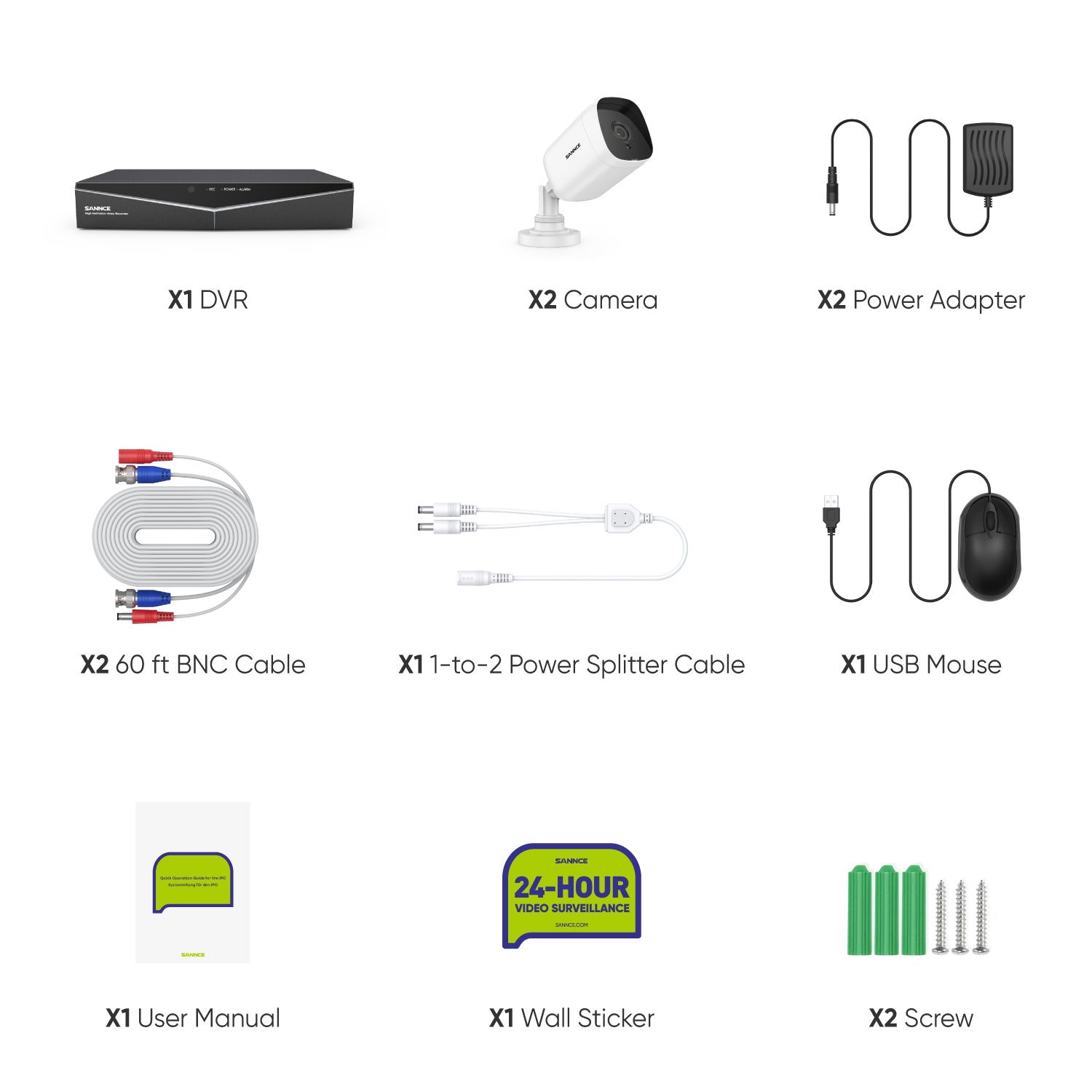

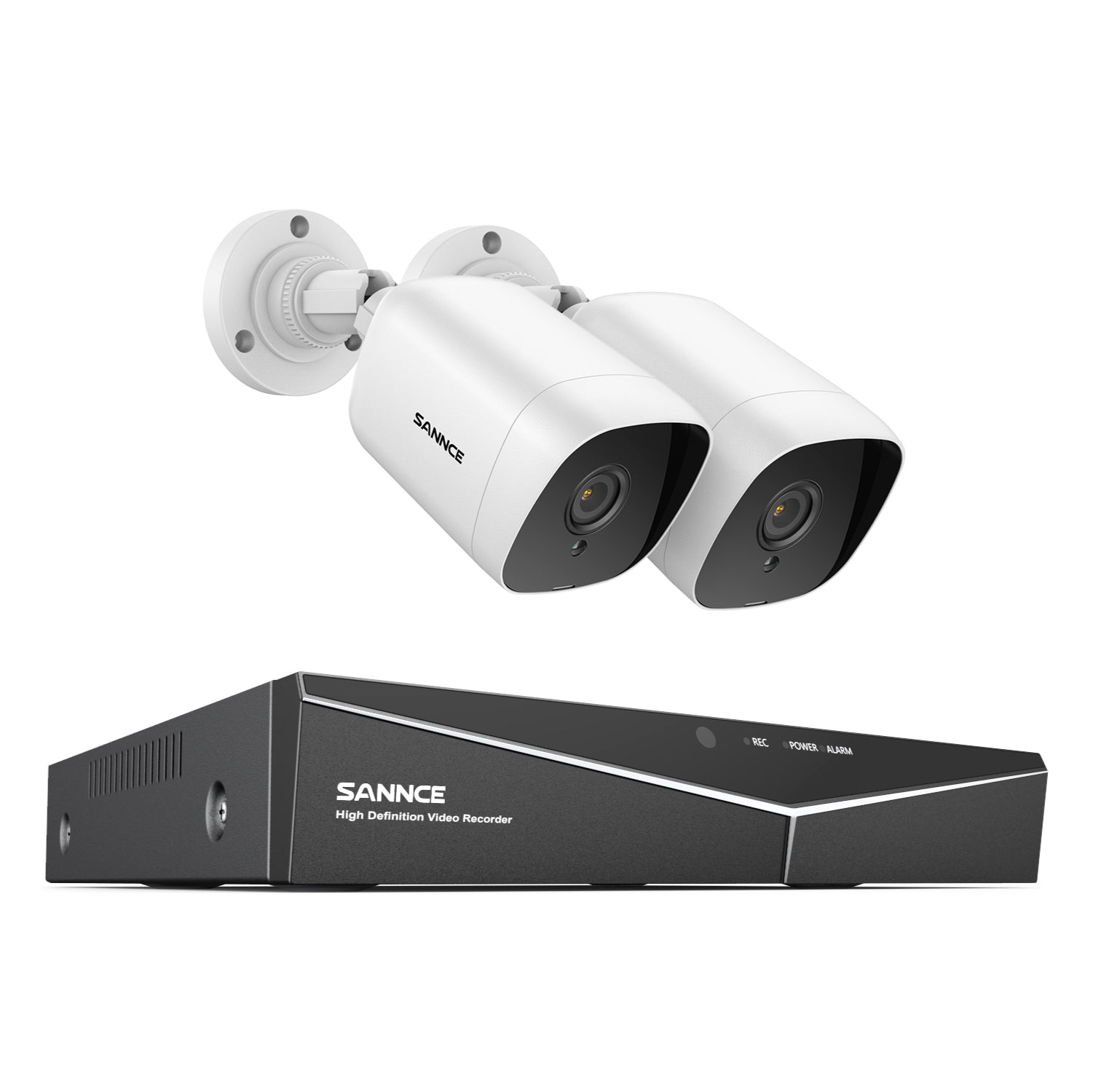

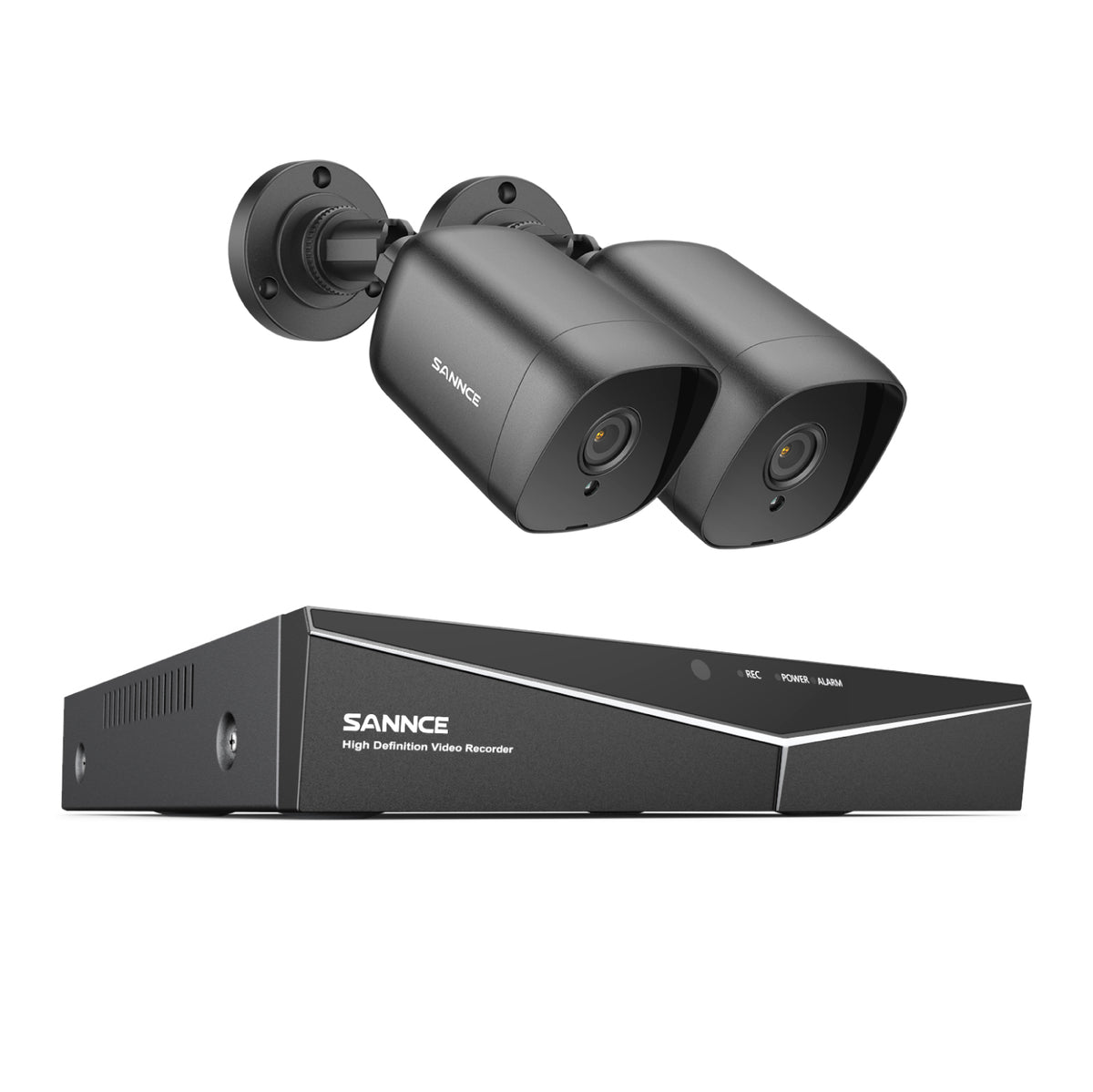

What’s in the Box
1X DVR
2X Cameras
2X 60 ft/18 m BNC Cables
2X Power Adapters
1X 1-to-2 Power Splitter
1X USB Mouse
2X Mounting Screw Bags
1X User Manual
Download DN41CK+C51EQ Specification

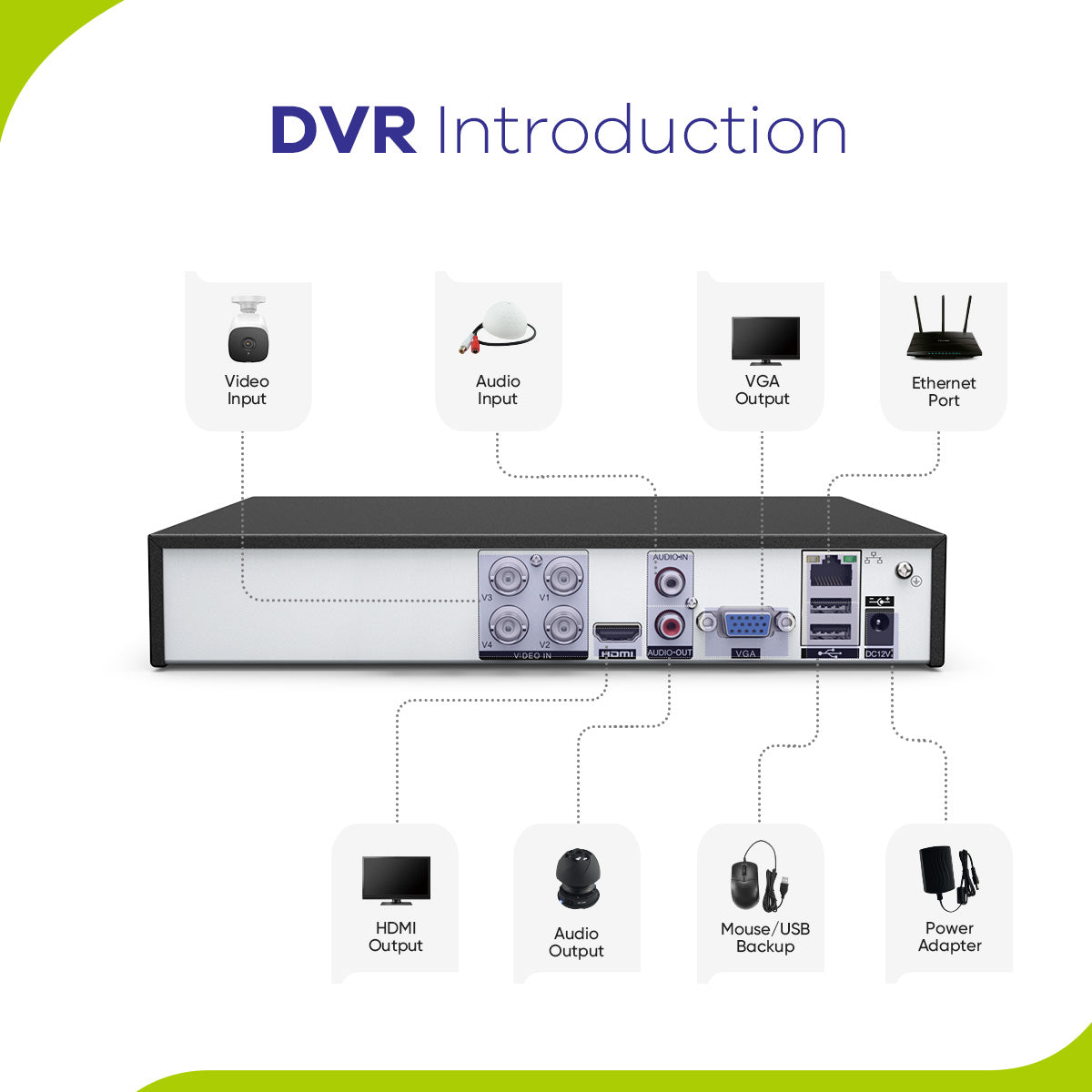

DVR (Model Number: DN41CK) |
||

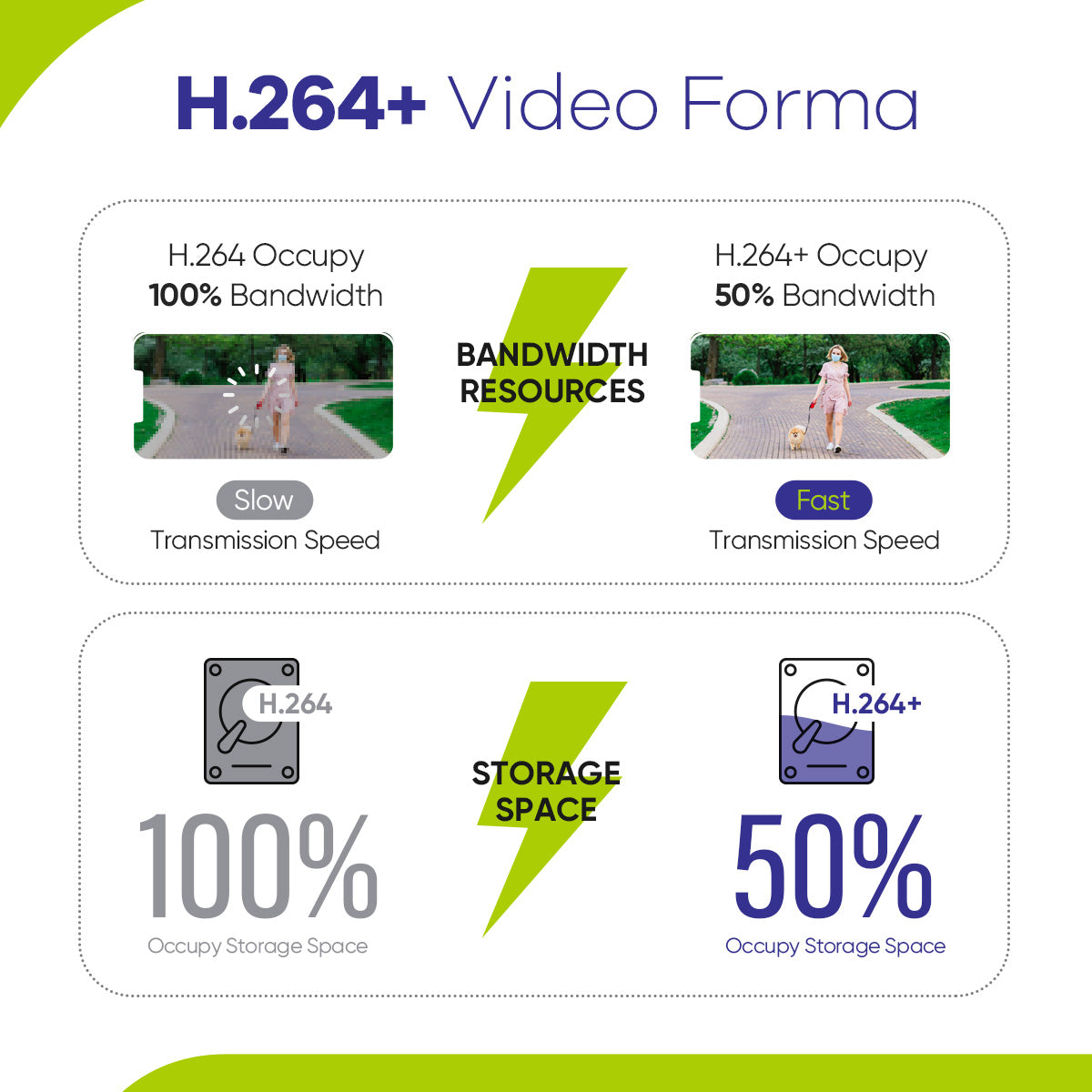

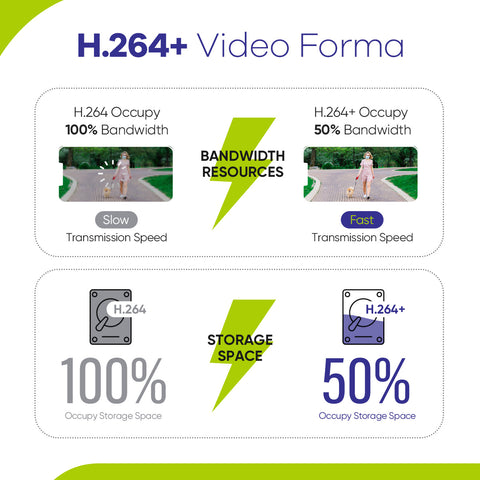

Video & Audio | Video Compression | H.264+/H.264 |
Video Input | 4CH HD Analog | |
Video Output | HDMI and VGA up to 1080p | |
Audio Input | 1CH RCA; 8CH via Coaxial Cable | |
Audio Output | 1CH RCA | |
Analog HD Recording Resolution | 1080p Lite (960 X 1080) | |
Analog HD Playback Resolution | 1080p Lite (960 X 1080) | |
IPC Recording Resolution | 1CH up to 2MP | |
IPC Playback Resolution | 2MP | |
Max. Playback Channel | 4CH | |
ONVIF Protocols | Support | |
Hard Drive | HDD | 1 SATA Interface |
HDD Capacity | Up to 6 TB Capacity | |
General | Network Interface | RJ45 X1 (10/100 M) |
USB | USB 2.0 X2 | |
Operating Power | DC 12 V | |
Working Temperature | 14 °F – 131 °F/-10 °C – 55 °C | |
Dimensions (W X H X D) | 10.2" X 8.7" X 1.8''/260 X 222 X 45 mm | |
Weight (Without Hard Disk) | 2.2 lbs./1 kg (Without HDD) | |

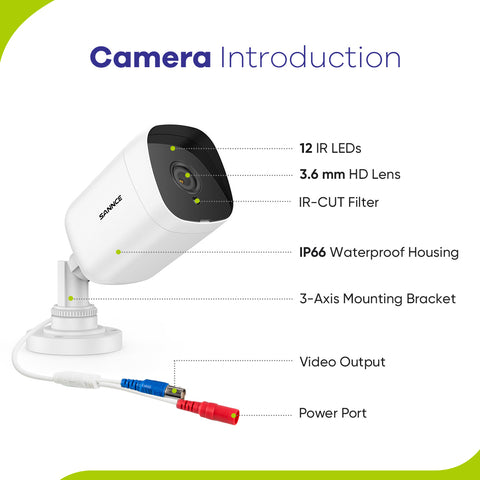

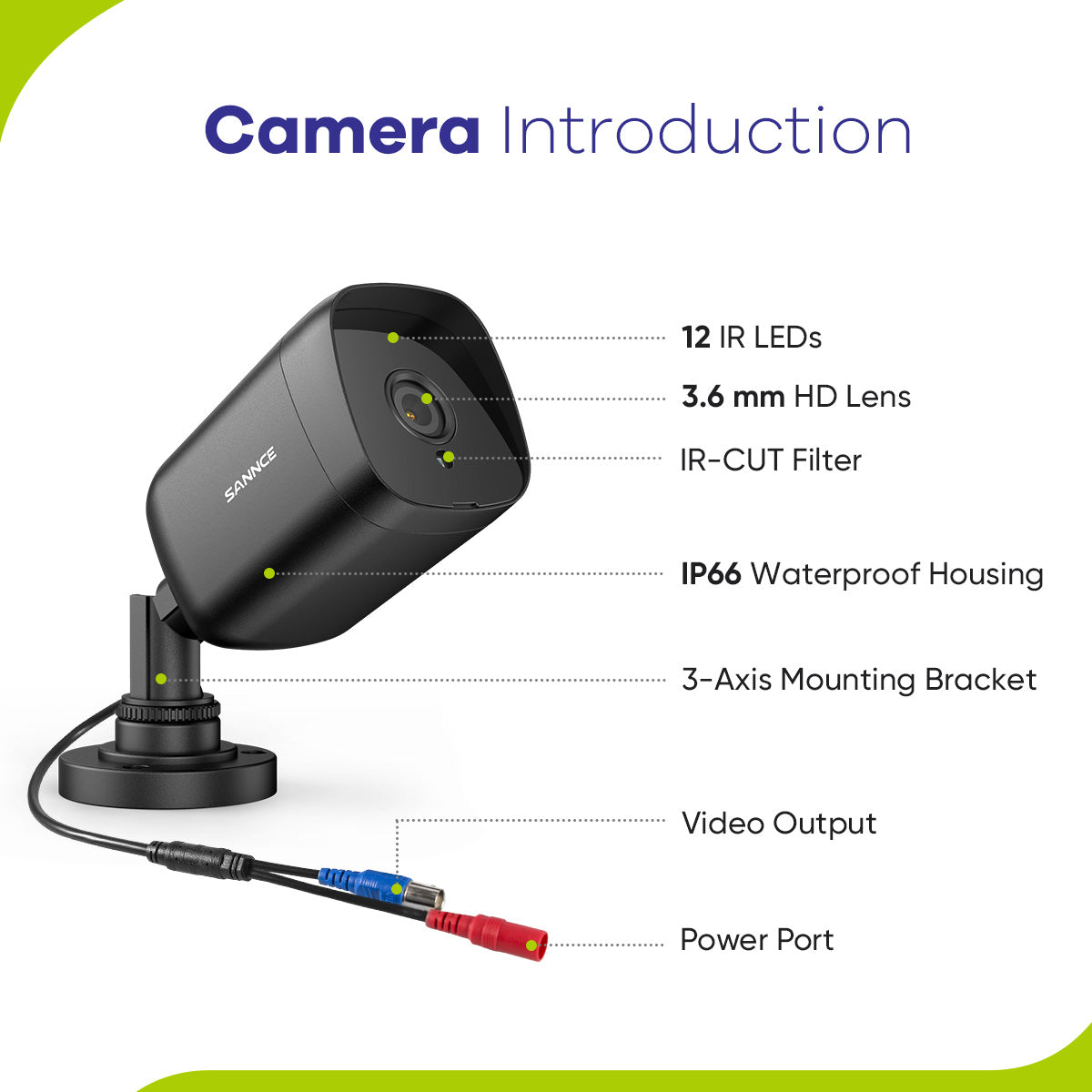

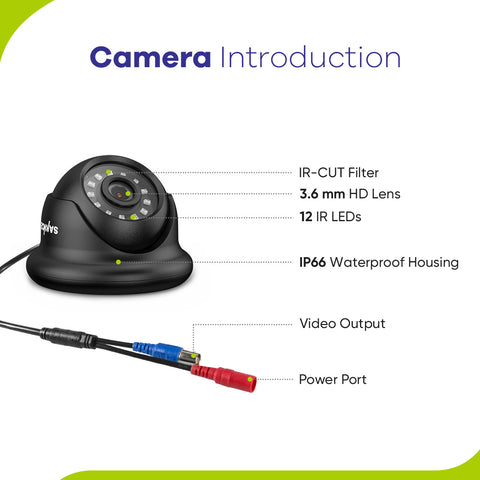

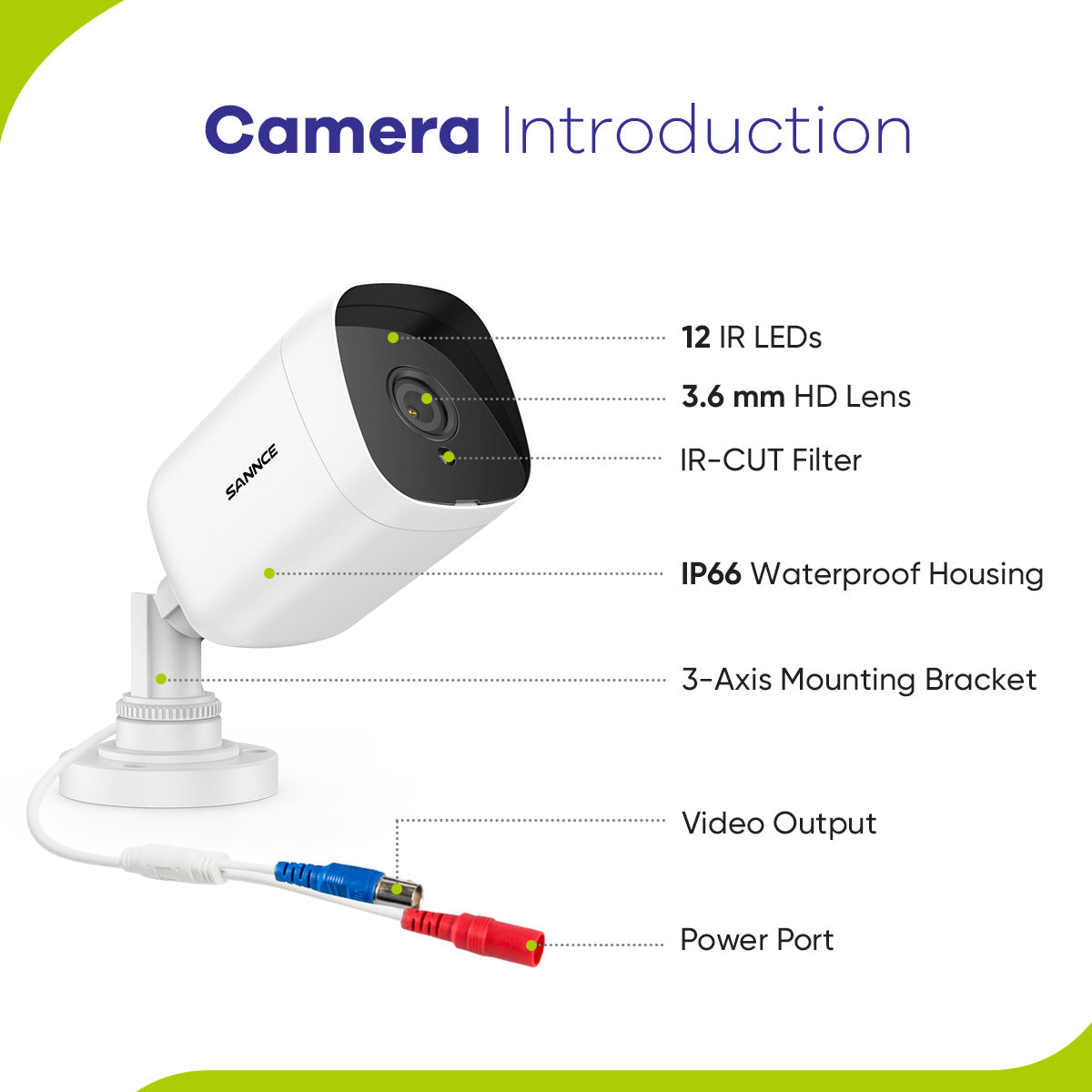

Camera (Model Number: C51EQ) |
||
Camera | Video Resolution | 1080p (1920 X 1080) |
Signal System | PAL/NTSC | |
Image Sensor | 1/4" Progressive Scan CMOS | |
Lens | 3.6 mm | |
Min. Illumination | 0.02 Lux@(F1.2 AGC ON); 0 Lux with IR on | |
Angle of View | 80.7° | |
Number of Infrared LEDs | 1 | |
Night Vision Distance | Up to 100 ft/30 m | |
DNR | DNR | |
Wide Dynamic Range | Digital WDR | |
IR-Cut Filter | Yes | |
Video Output | HD BNC X1 | |
General | Housing | Plastic |
Color | White | |
Operating Power | DC 12 V | |
Operating Temperature | -40 °F – 140 °F/-40 °C – 60 °C | |
Indoor/Outdoor | Indoor/Outdoor | |
Weatherproof Rating | IP66 | |
Dimensions (L X W X H) | 6.38” X 2.76” X 2.76”/162 X 70 X 70 mm | |
Weight | 0.33 lb./150 g |
DVR (Model Number: DN41CK) |
|
Video & Audio | |
Video Compression | H.264+/H.264 |
Video Input | 4CH HD Analog |
Video Output | HDMI and VGA up to 1080p |
Audio Input | 1CH RCA; 8CH via Coaxial Cable |
Audio Output | 1CH RCA |
Analog HD Recording Resolution | 1080p Lite (960 X 1080) |
Analog HD Playback Resolution | 1080p Lite (960 X 1080) |
IPC Recording Resolution | 1CH up to 2MP |
IPC Playback Resolution | 2MP |
Max. Playback Channel | 4CH |
ONVIF Protocols | Support |
Hard Drive | |
HDD | 1 SATA Interface |
HDD Capacity | Up to 6 TB Capacity |
General | |
Network Interface | RJ45 X1 (10/100 M) |
USB | USB 2.0 X2 |
Operating Power | DC 12 V |
Working Temperature | 14 °F – 131 °F/-10 °C – 55 °C |
Dimensions (W X H X D) | 10.2" X 8.7" X 1.8''/260 X 222 X 45 mm |
Weight (Without Hard Disk) | 2.2 lbs./1 kg (Without HDD) |
Camera (Model Number: C51EQ) |
|
Camera | |
Video Resolution | 1080p (1920 X 1080) |
Signal System | PAL/NTSC |
Image Sensor | 1/4" Progressive Scan CMOS |
Lens | 3.6 mm |
Min. Illumination | 0.02 Lux@(F1.2 AGC ON); 0 Lux with IR on |
Angle of View | 80.7° |
Number of Infrared LEDs | 1 |
Night Vision Distance | Up to 100 ft/30 m |
DNR | DNR |
Wide Dynamic Range | Digital WDR |
IR-Cut Filter | Yes |
Video Output | HD BNC X1 |
General | |
Housing | Plastic |
Color | White |
Operating Power | DC 12 V |
Operating Temperature | -40 °F – 140 °F/-40 °C – 60 °C |
Indoor/Outdoor | Indoor/Outdoor |
Weatherproof Rating | IP66 |
Dimensions (L X W X H) | 6.38” X 2.76” X 2.76”/162 X 70 X 70 mm |
Weight | 0.33 lb./150 g |
